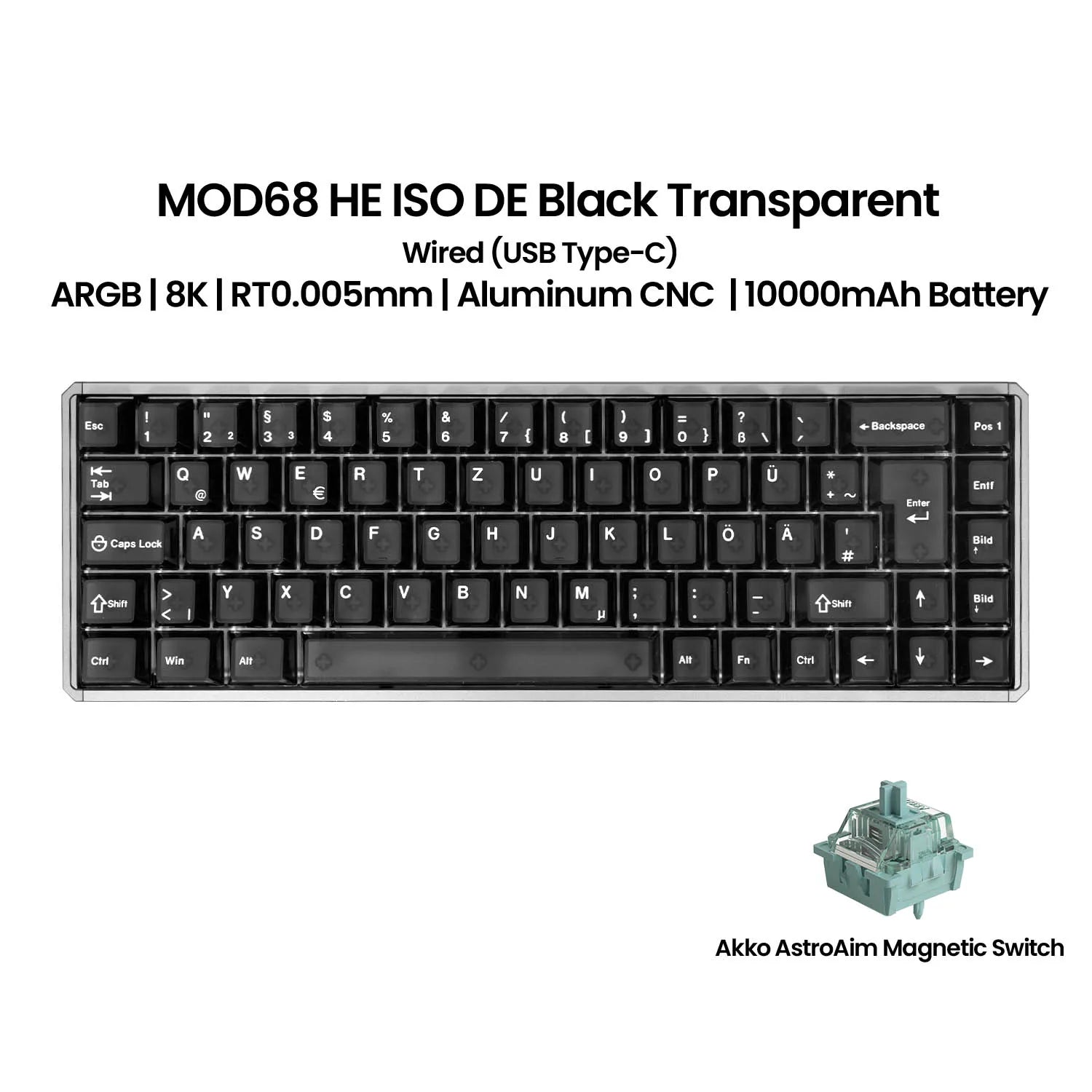

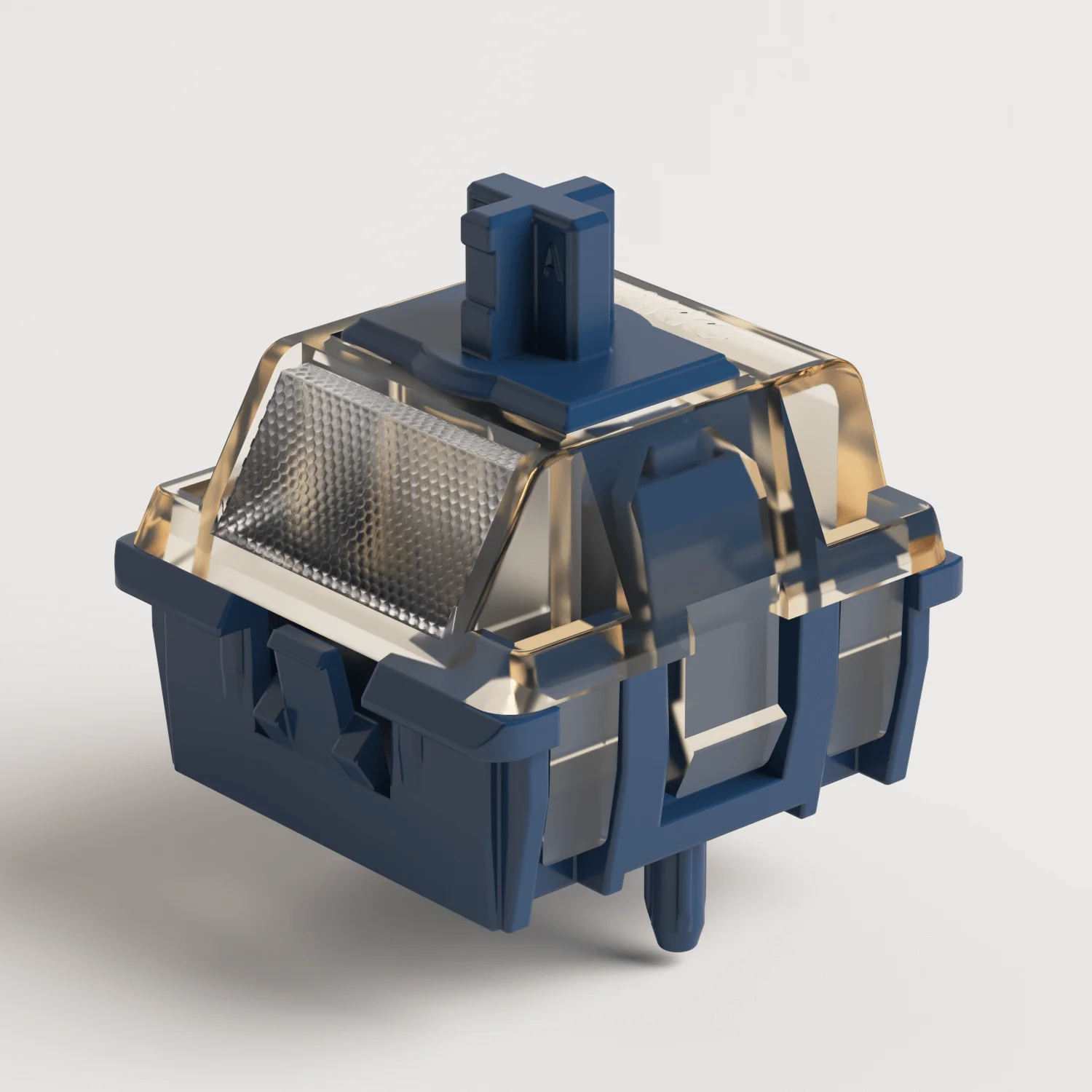

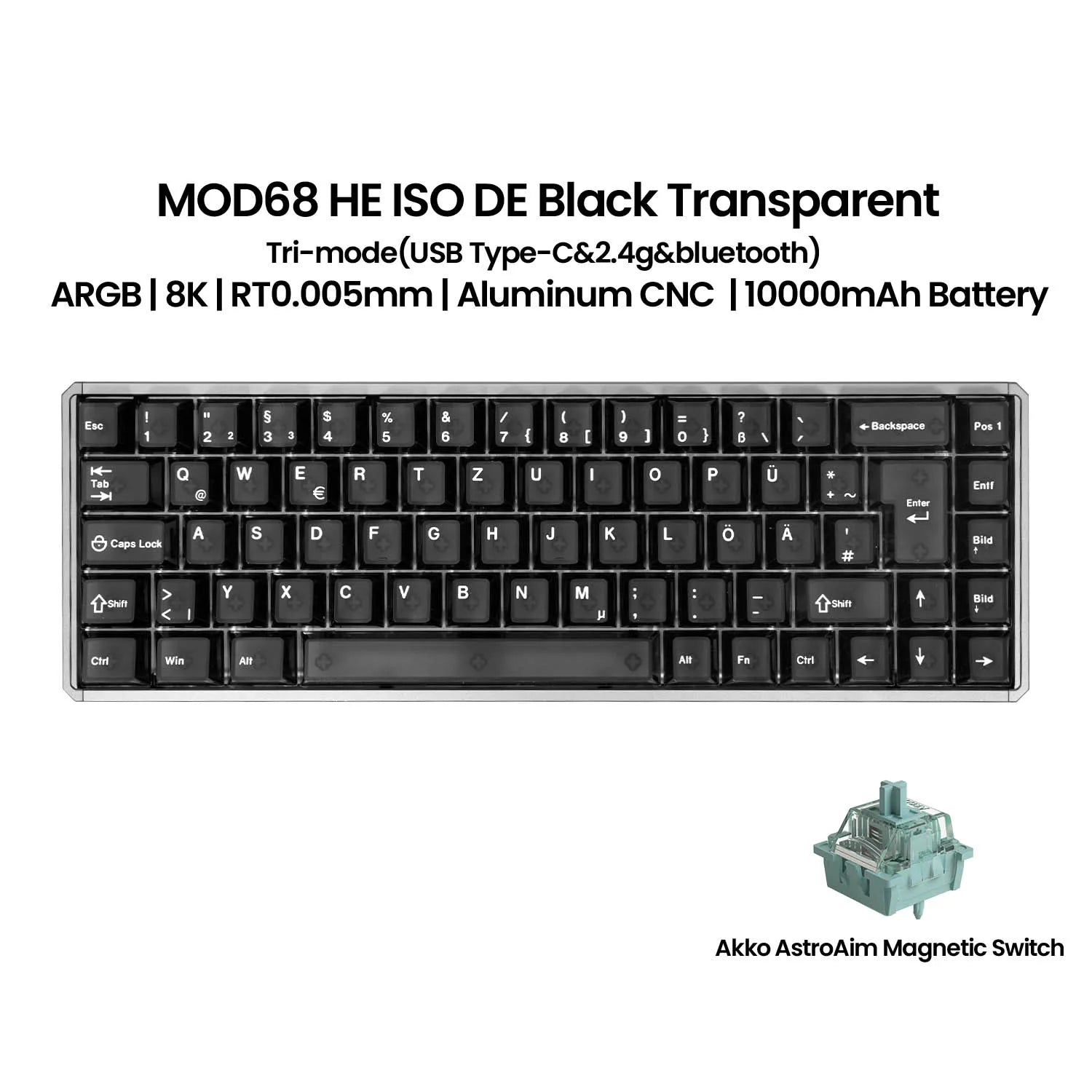

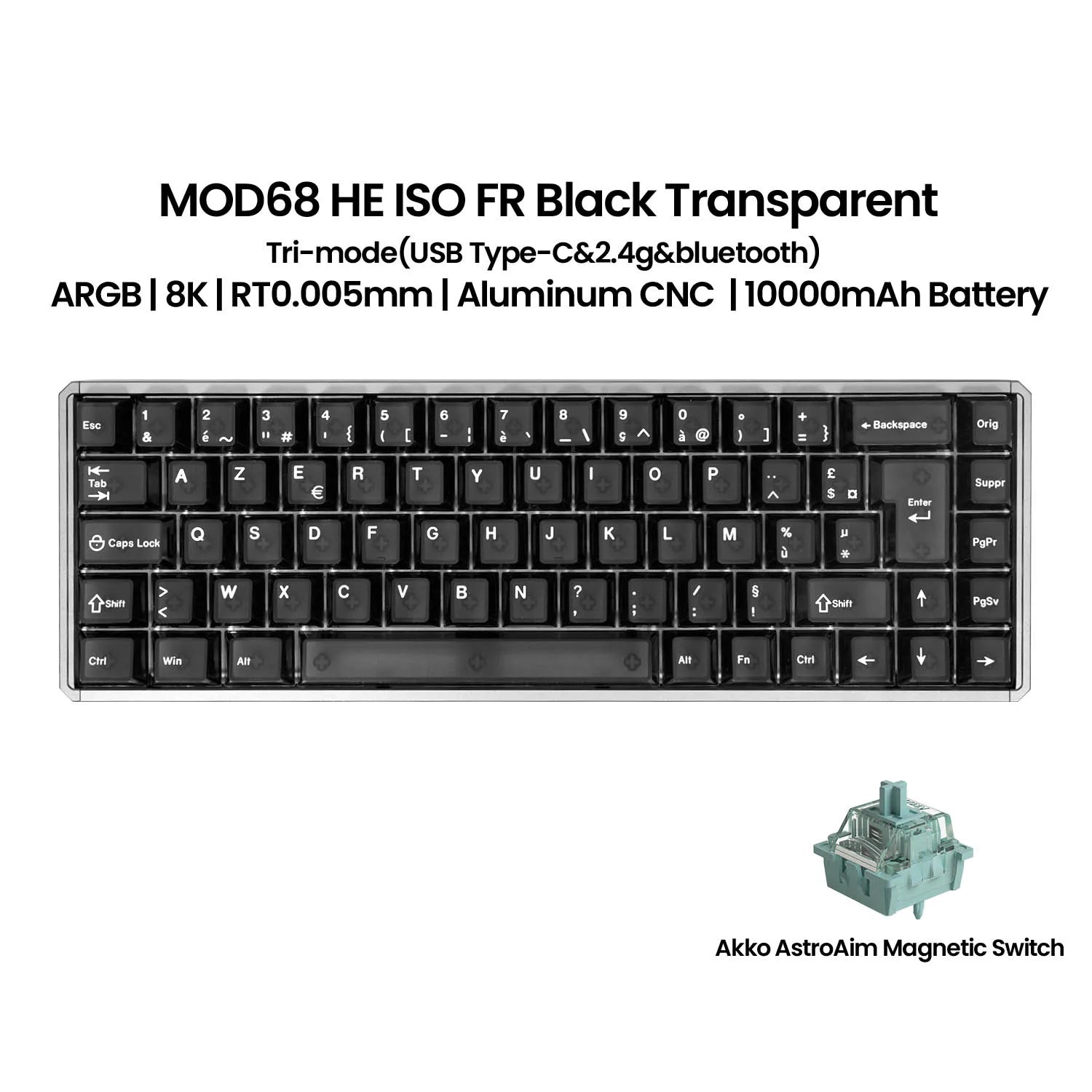

Akko AstroAim Magnetic Switch

Type: Linear

Total Travel: 3.5±0.1mm

Initial Force: 35gf

End Force: 55gf

Initial Magnetic Flux: 95±15Gs(PCB1.6mm) / 110±15Gs(PCB1.2mm)

Bottom-out Magnetic Flux: 580±40Gs(PCB1.6mm) / 720±50Gs(PCB1.2mm)

Top/Stem/Bottom: PC/POM/PA66

LED Diffuse

Full Range RT0.005mm

Achieve ultra-accurate 0.005mm Rapid Trigger and adjustable actuation distance in 0.005mm step. This allows users to fine-tune their typing or gaming experience, ensuring optimal actuation for faster response times with enhanced precision, ideal for competitive gaming.

ARM Cortex-M4 CPU

The powerful CPU delivers enhanced processing power with low energy consumption. It features automatic calibration between -20°C and 80°C

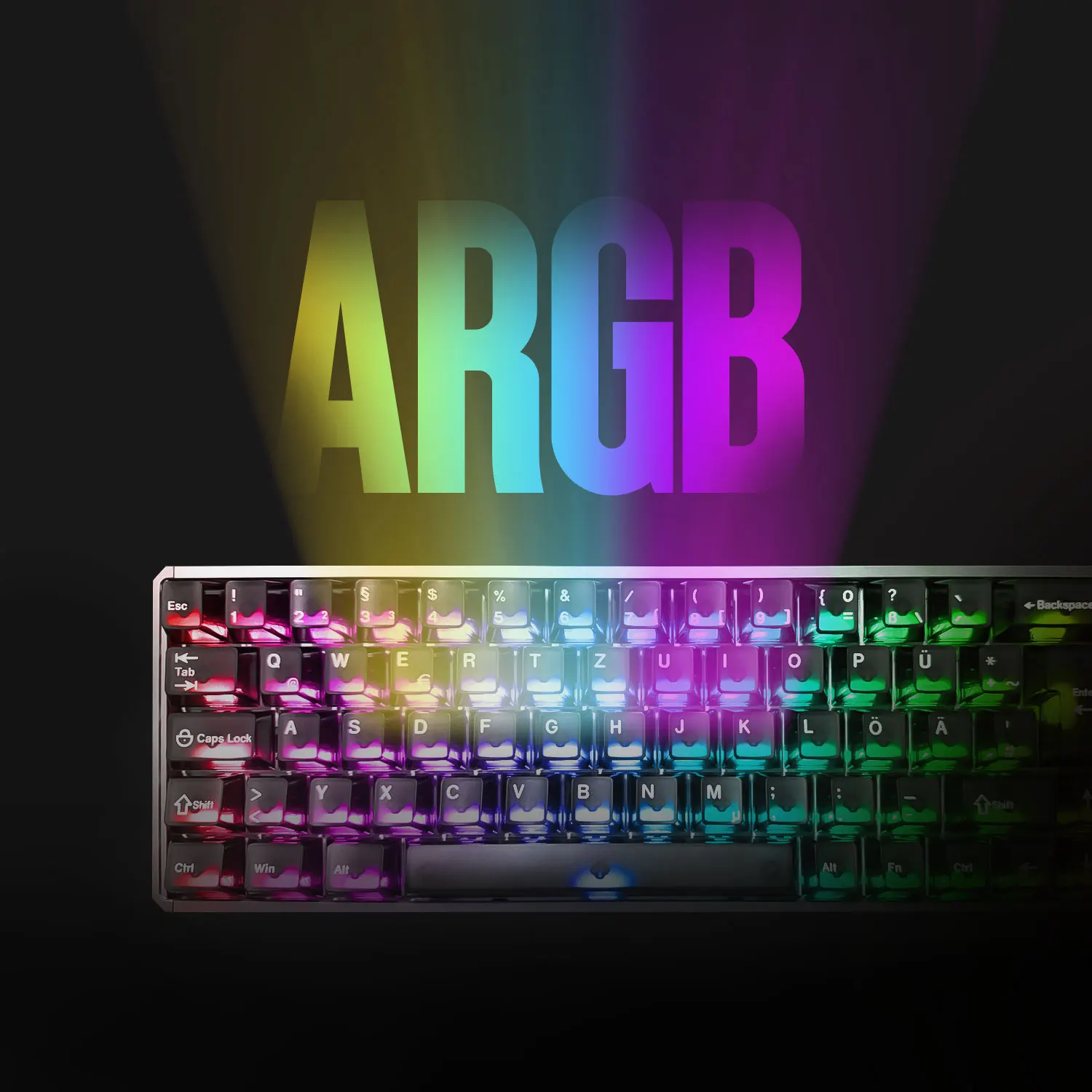

ARGB at a 500Hz Refresh Rate

The MOD68 HE Magnetic Keyboard features ARGB(addressable RGB) with individually controlled LEDs for smooth, flicker-free lighting. With Alpha channel integration and a 500Hz refresh rate, it offers richer dynamic effects and reduces visual fatigue—perfect for gaming and aesthetic builds.

RT Stabilizer & Lubed Stabilizers

This “RT Stabilizer” mode is especially useful when set to a Rapid Trigger precision of 0.005mm, as magnetic switch keyboards may experience unintended inputs or disconnection from slight hand tremors, which can disrupt the overall gaming experience.

Mod68 HE Series has lubed stabilizers that reduce rattle, enhance key stability, and deliver a smoother typing experience.

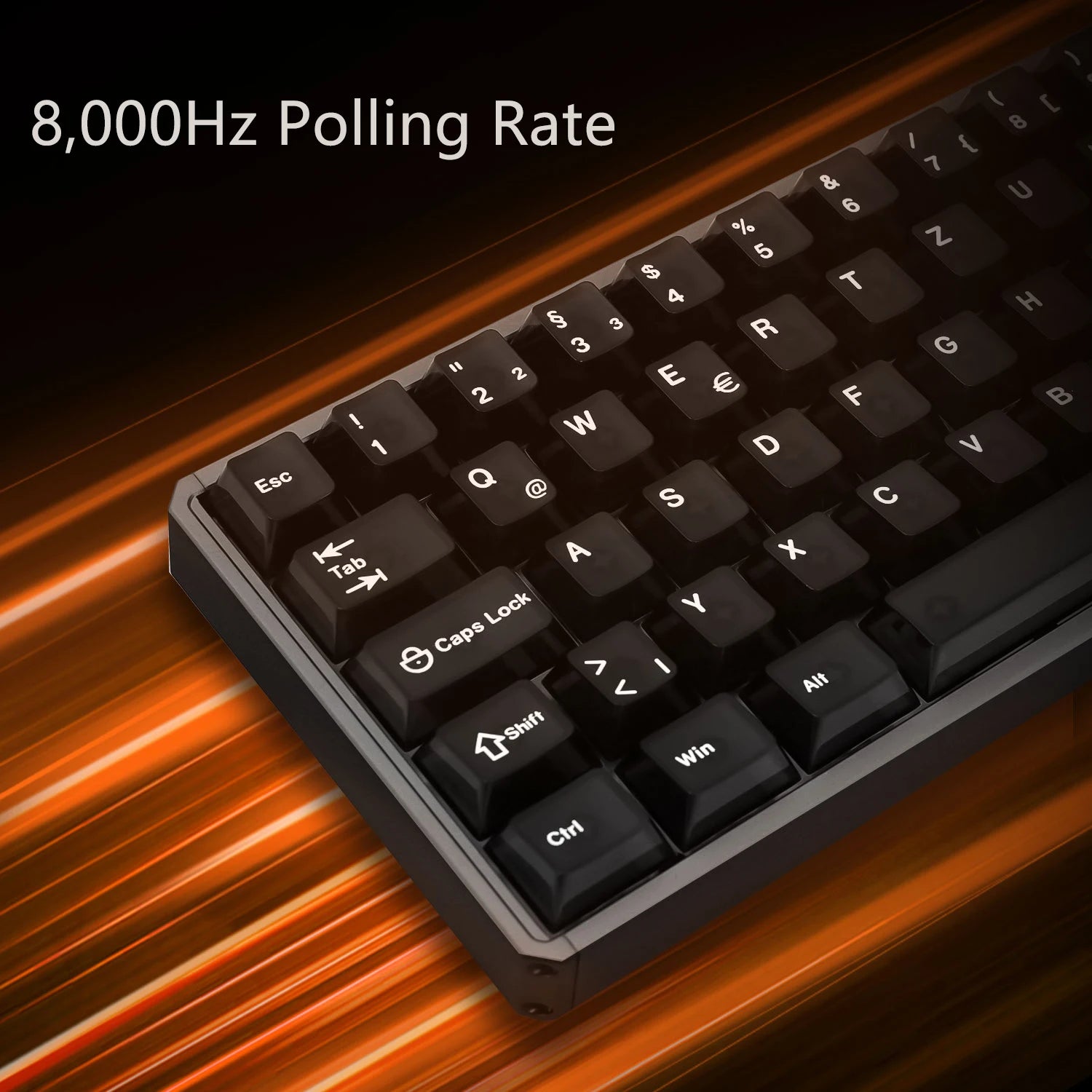

8,000Hz Polling Rate

Enjoy ultra-fast response times and smoother, more precise inputs—perfect for gaming and high-performance tasks.

Mod68 Wired Version supports an 8,000Hz polling rate for ultra-low latency and instant response.

For Mod68 Wireless Version (Tri-Mode), supports 8000Hz polling rate for all keys in wired or 2.4G wireless modes.

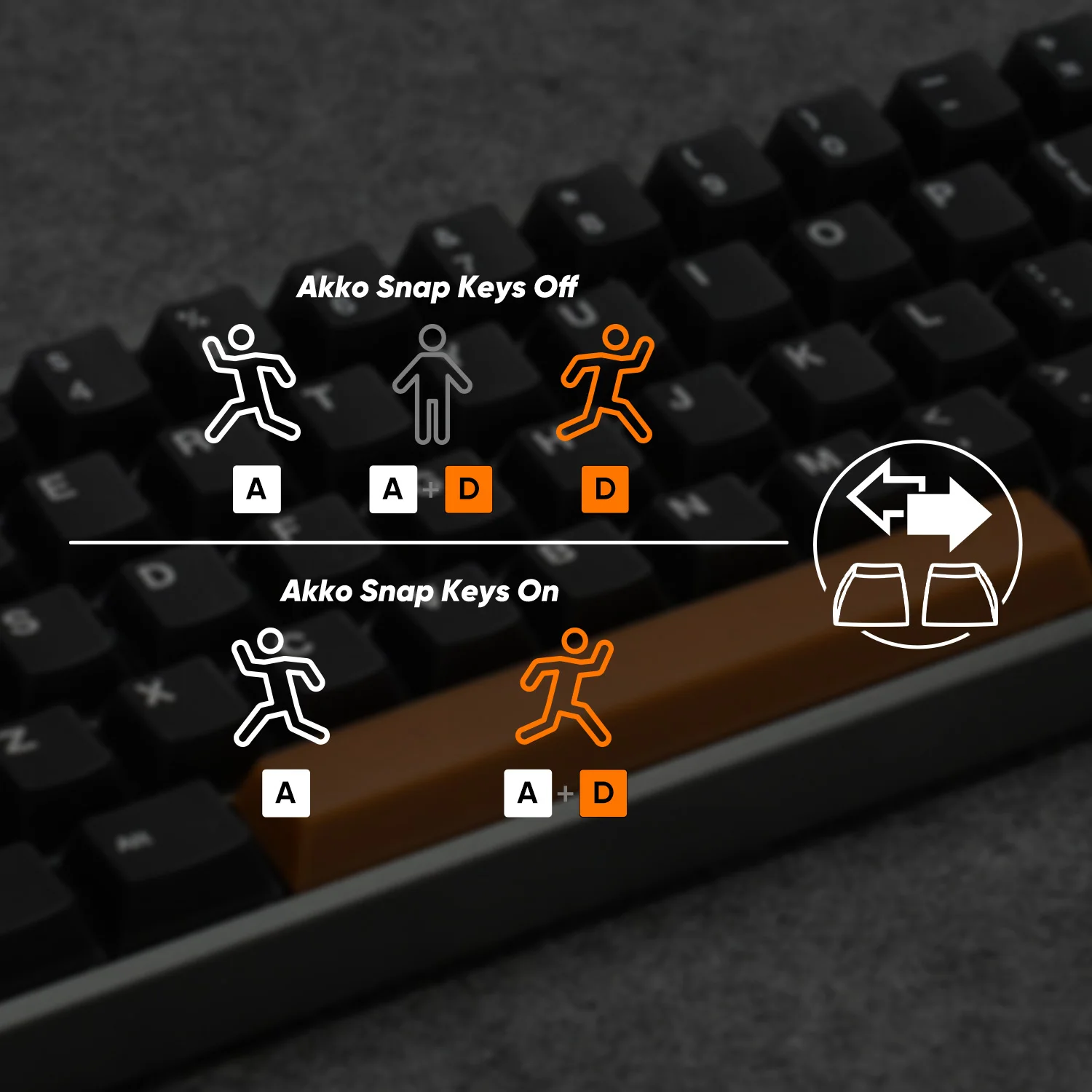

Snap Key

Snap Key is MonsGeek’s implementation of SOCD, which prioritizes the most recent keypress for swift directional changes without releasing previous inputs. This ensures fluid and responsive control, especially in FPS games, where quick reactions and precise movements are crucial.

Adjustable Actuation Distance

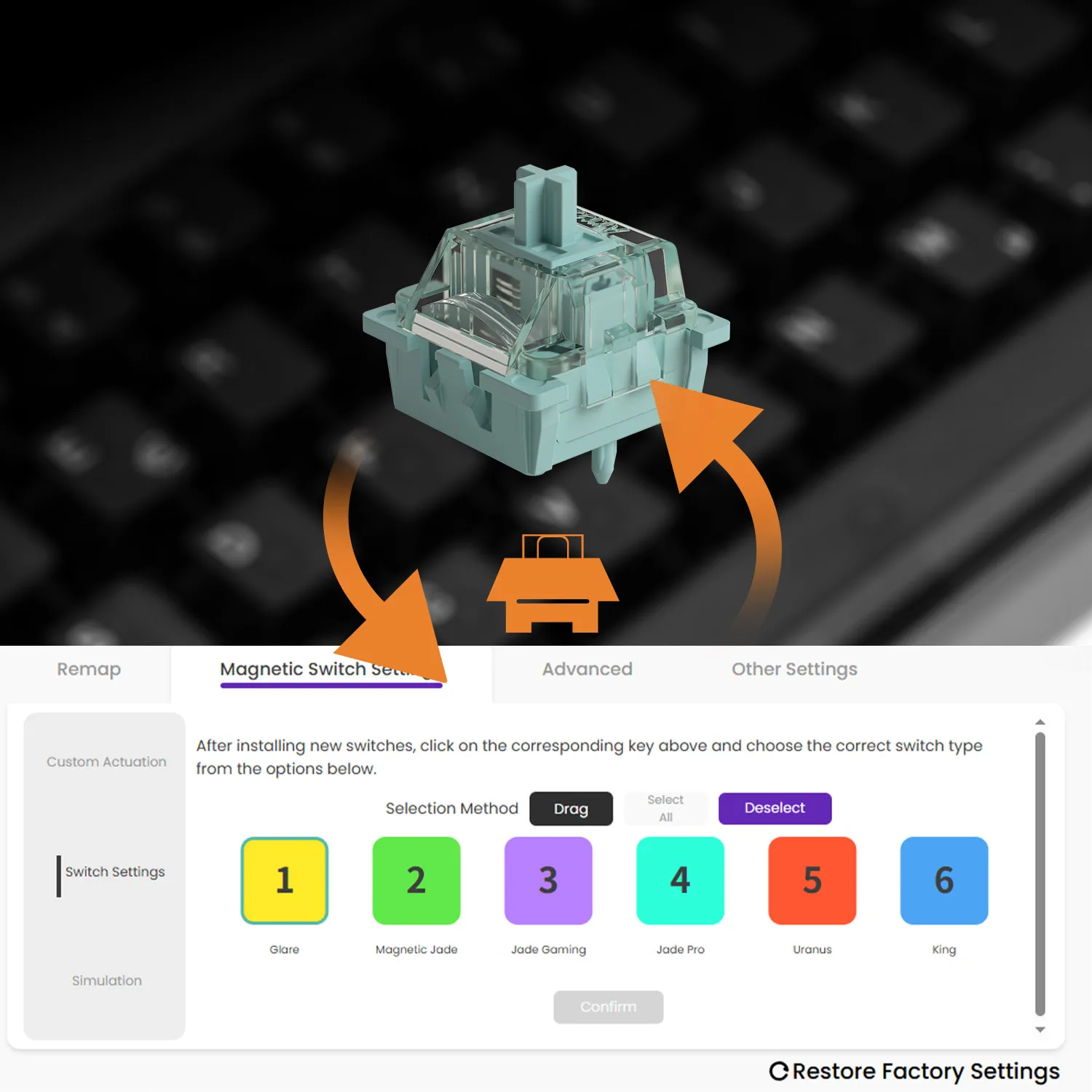

These magnetic switches allow users to adjust every key’s actuation point from 0.1mm to 3.4mm, which offers different kinds of pressing for gaming or typing.

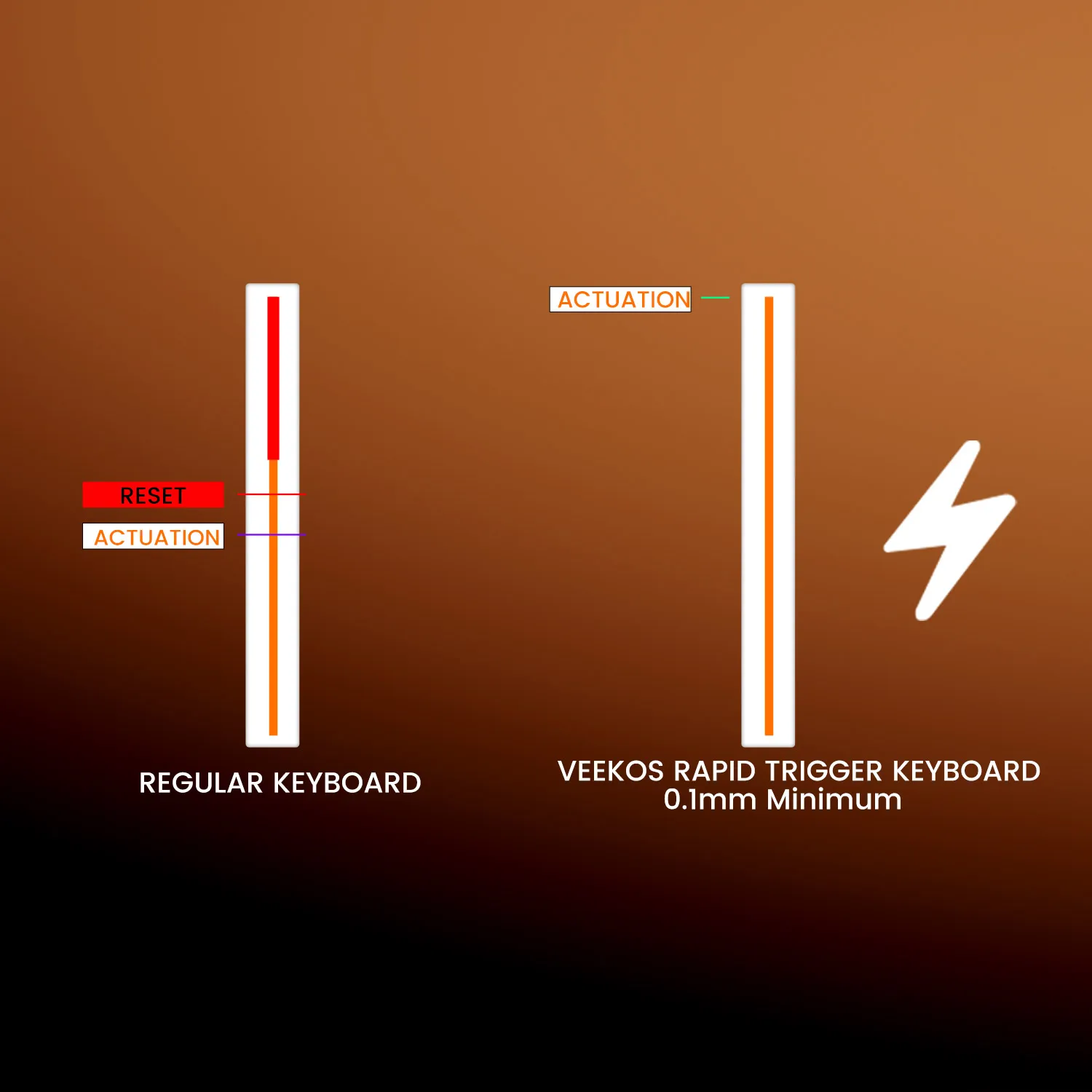

Rapid Trigger (RT)

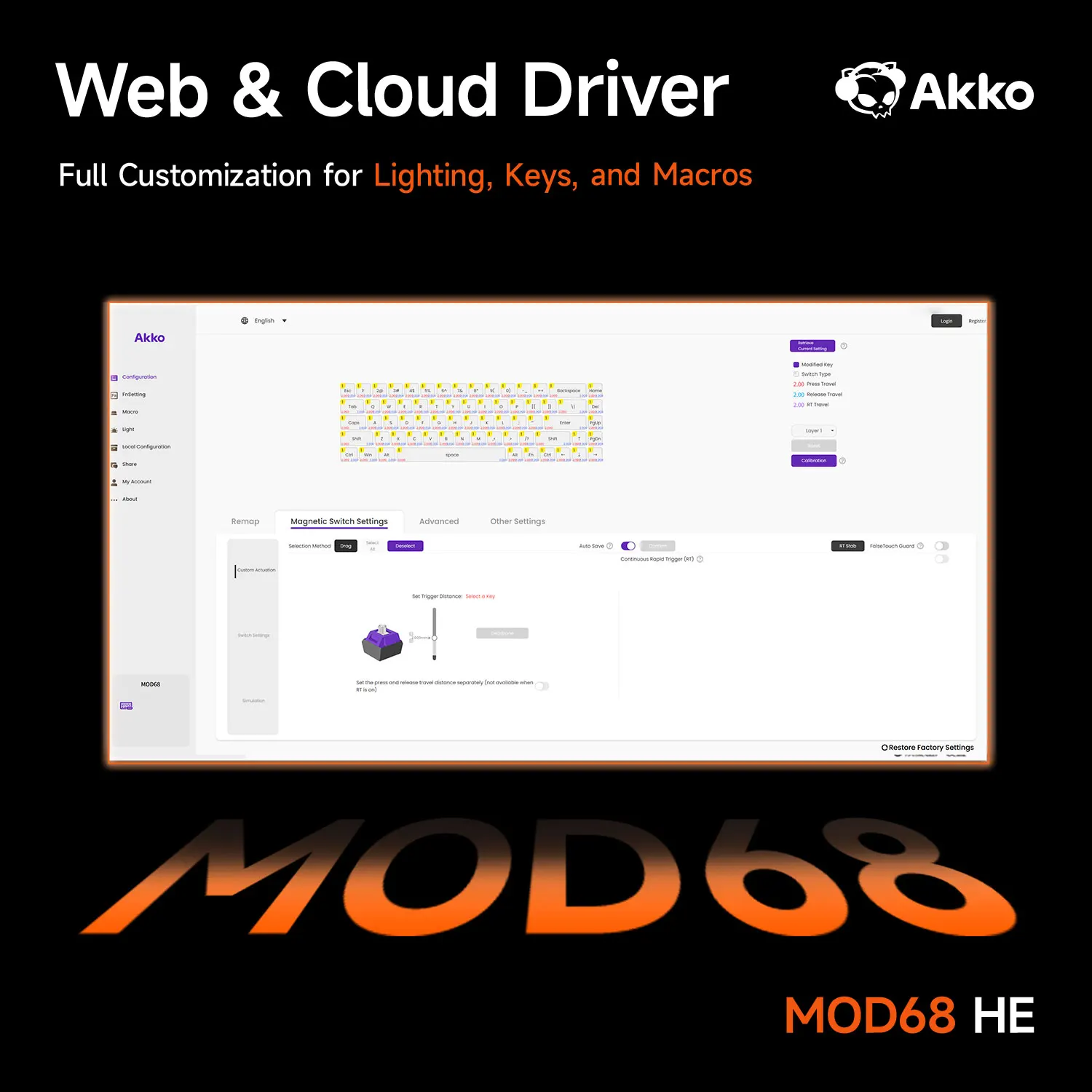

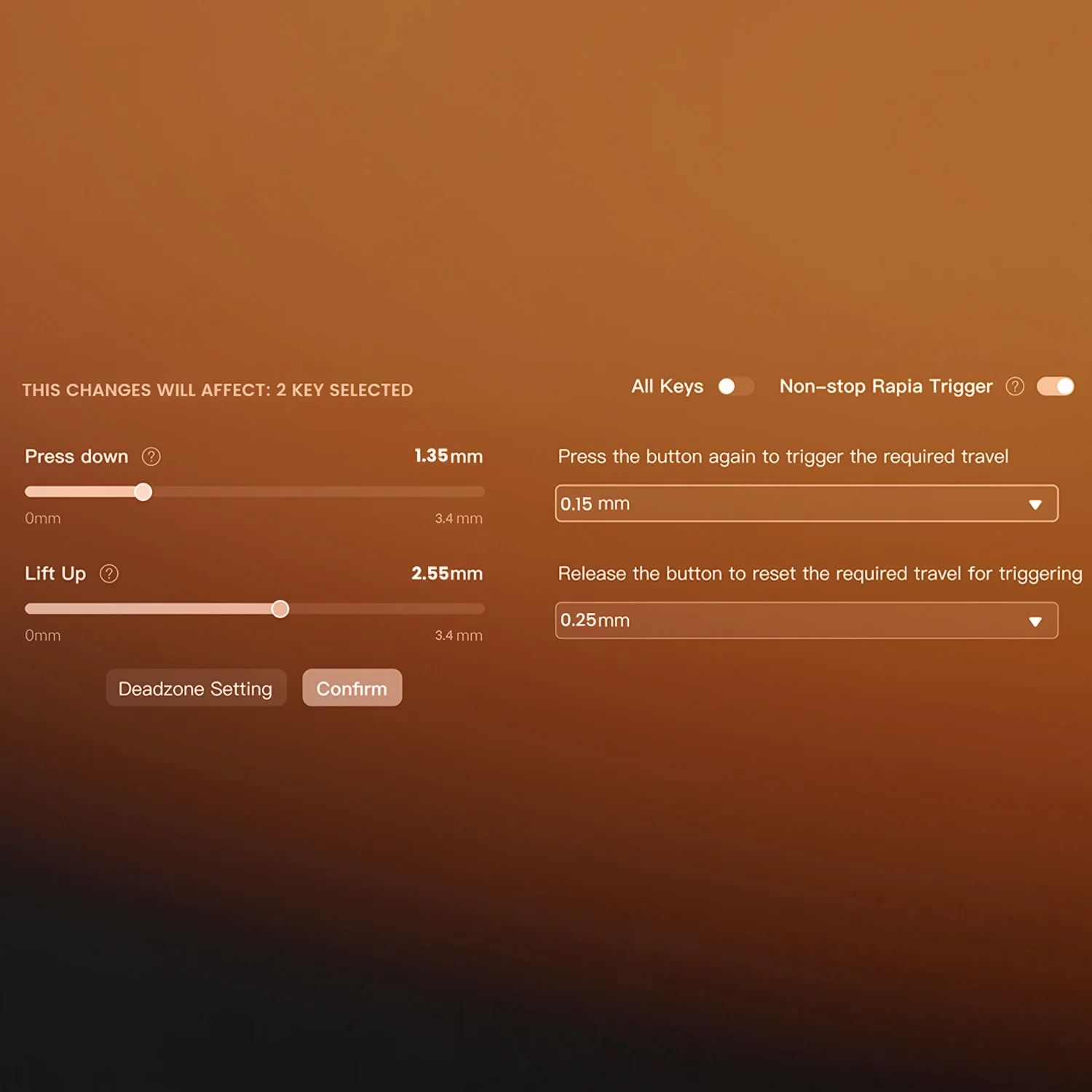

Rapid Trigger dynamically changes the keys’ actuation and deactivation points. Through the MonsGeek Driver, users can choose “All Buttons” or “Per Button” customization modes, as well as activate “Non-stop Rapid Trigger” for near-instant key response. This gives FPS gamers a competitive edge in fast-paced gameplay.

For example, when gamers enable RT, they can achieve “Counter-Strafe“ in VALORANT games.

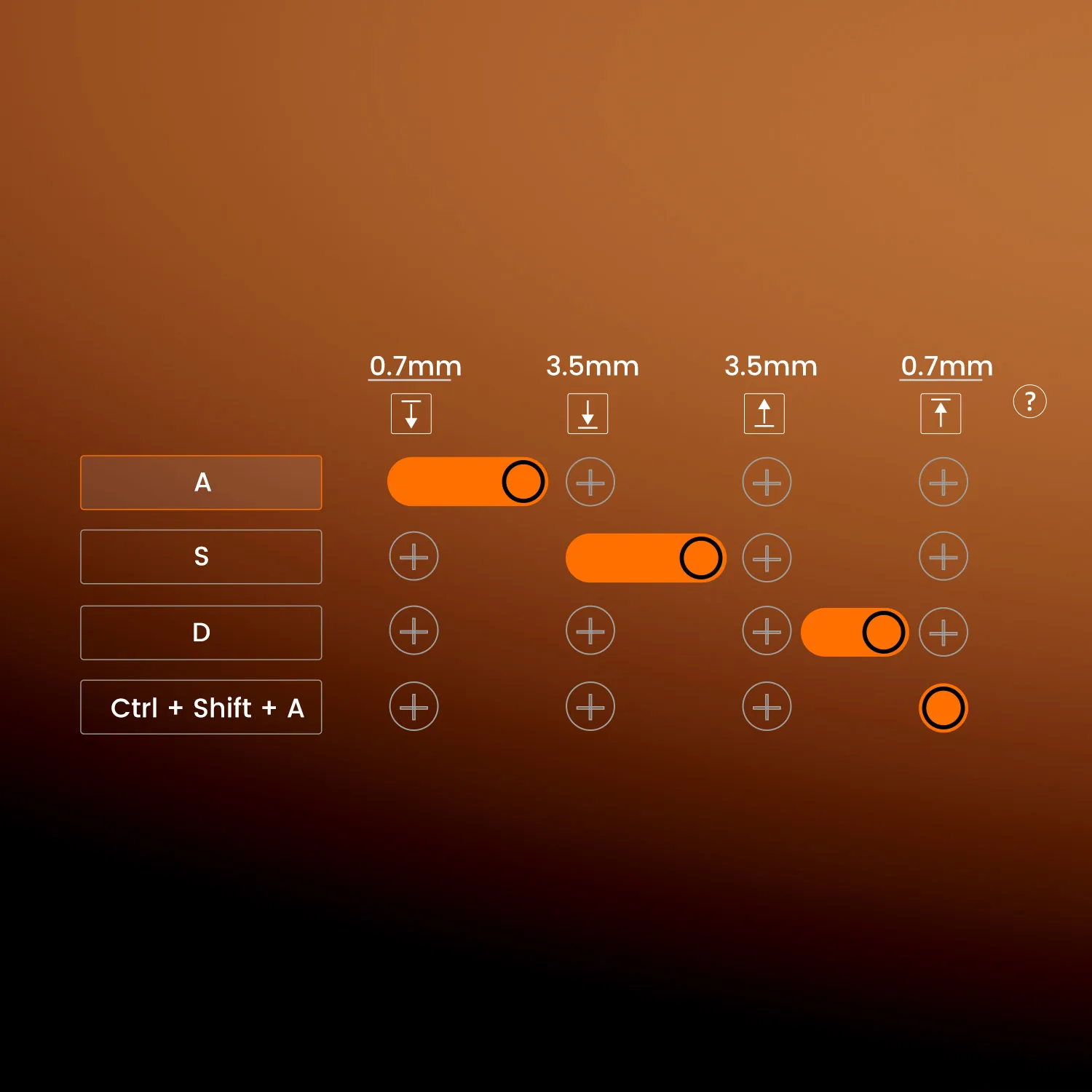

Dynamic Keystrokes (DKS)

Pressing a key can trigger four different key operations.

Depending on your keypress force: a light press triggers action 1, a deeper press activates action 2, and releasing the key also supports a two-stage key setting.

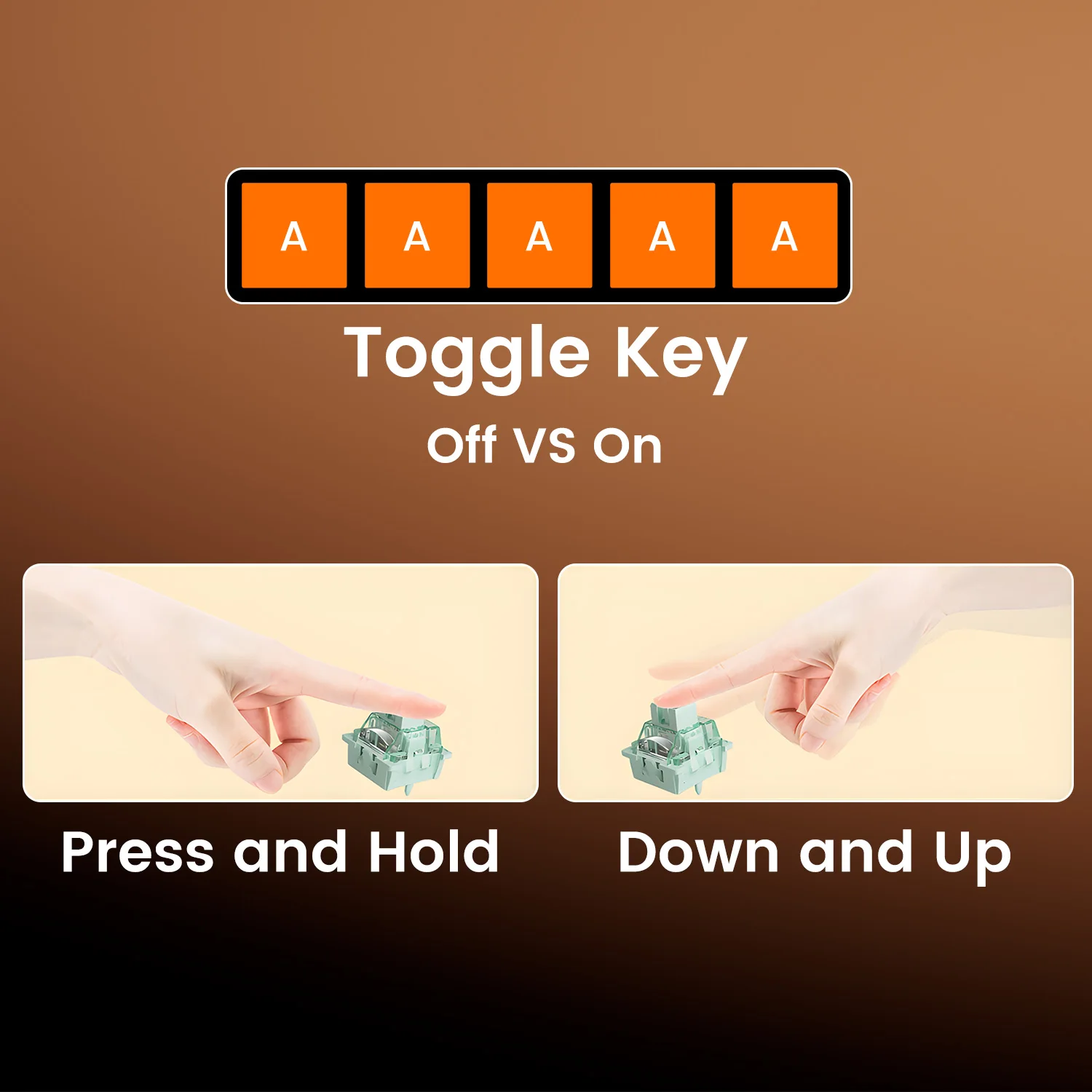

Toggle Key (TGL)

TGL, or Toggle Key, transforms a key into a toggle switch. When you press this switch, you can activate one of two scenarios: either continuously hold down the key/function, or trigger the key/function multiple times at a high frequency.

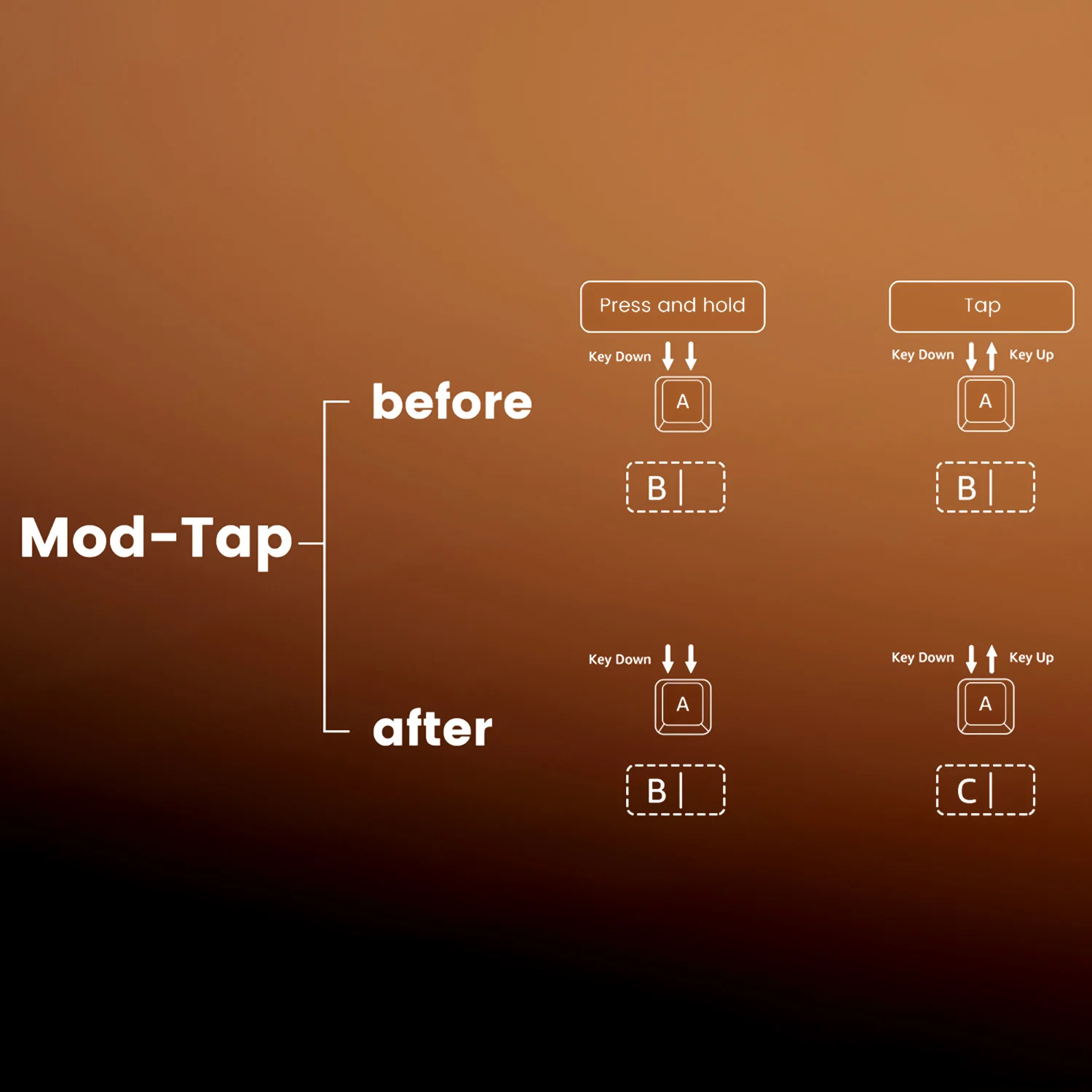

Mod-Tap

Mod-Tap is a design that provides convenience for gaming. It enables the creation of dedicated or dual-functional keys based on key press behavior.

A single keypress can achieve two functions: holding down the key for one function, and press the key for another.

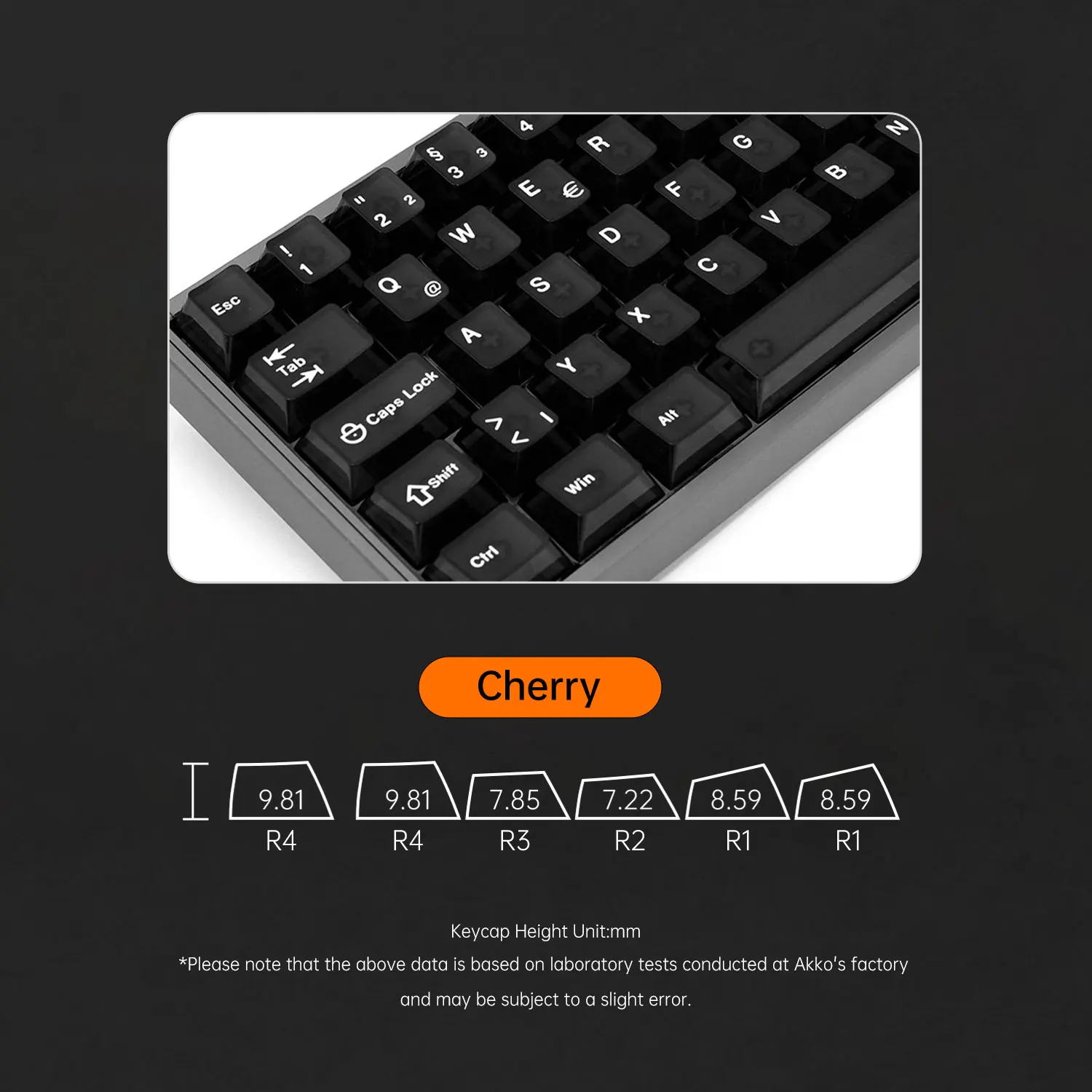

PC Pad-Printed Keycaps

Made from durable polycarbonate (PC) with pad-printed legends, these keycaps deliver a smooth surface and vibrant colors while maintaining a refined typing feel.

Color-Matched Side Accents

Color-matched side accents seamlessly blend with the aluminum case, elevating the keyboard’s refined and cohesive aesthetic.

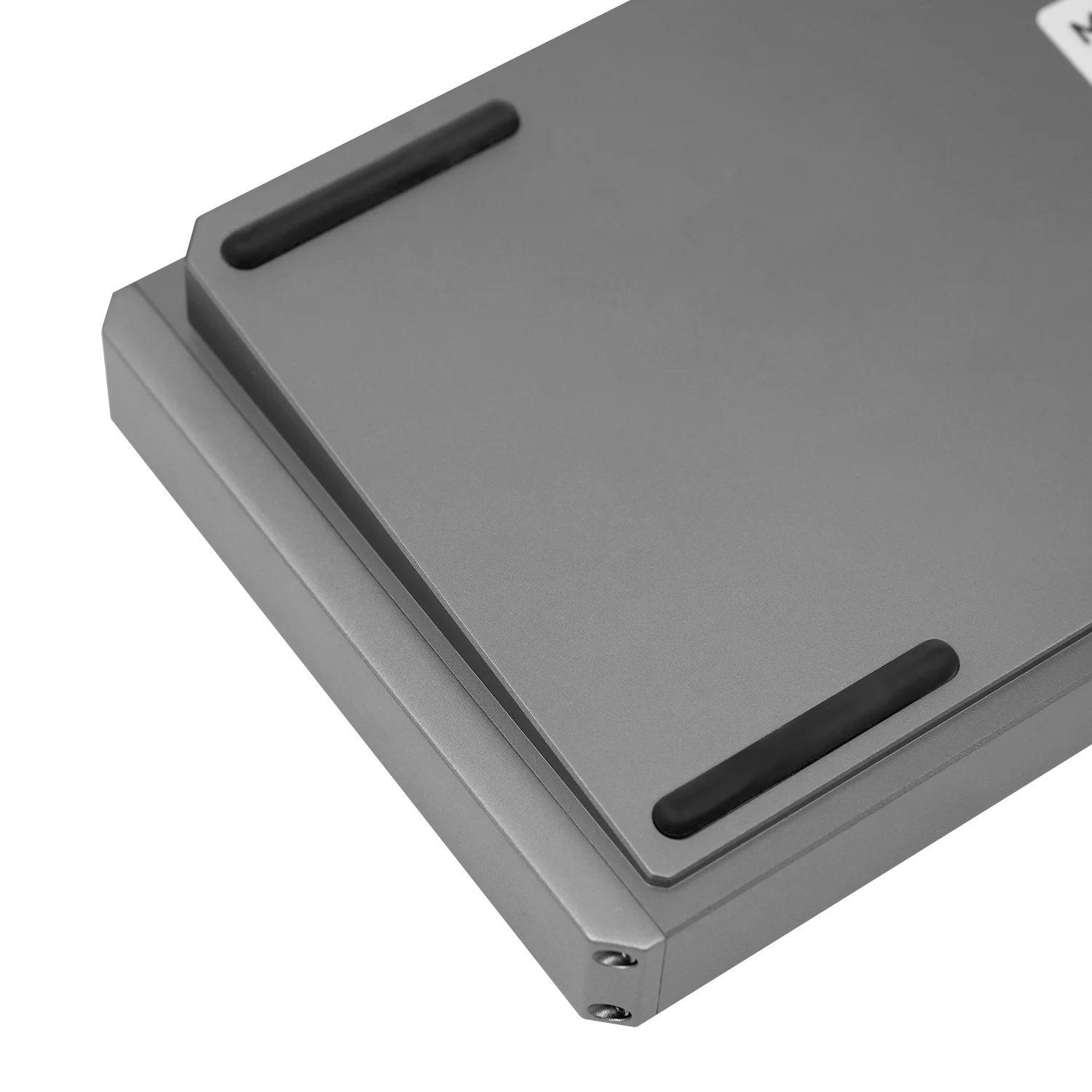

Minimalist Solid Backplate

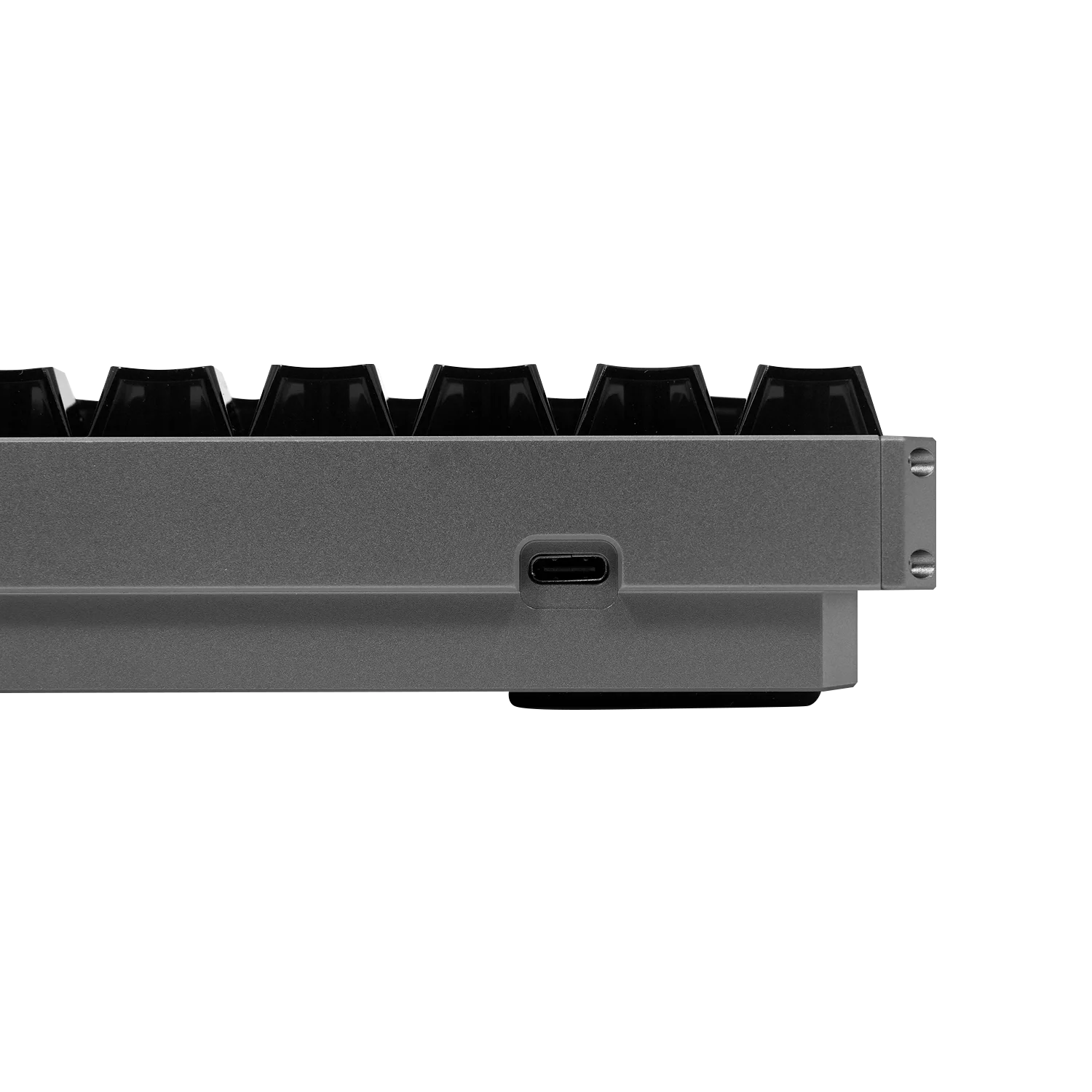

The clean, seamless aluminum backplate not only enhances durability but also adds a refined, minimalist aesthetic to your setup.

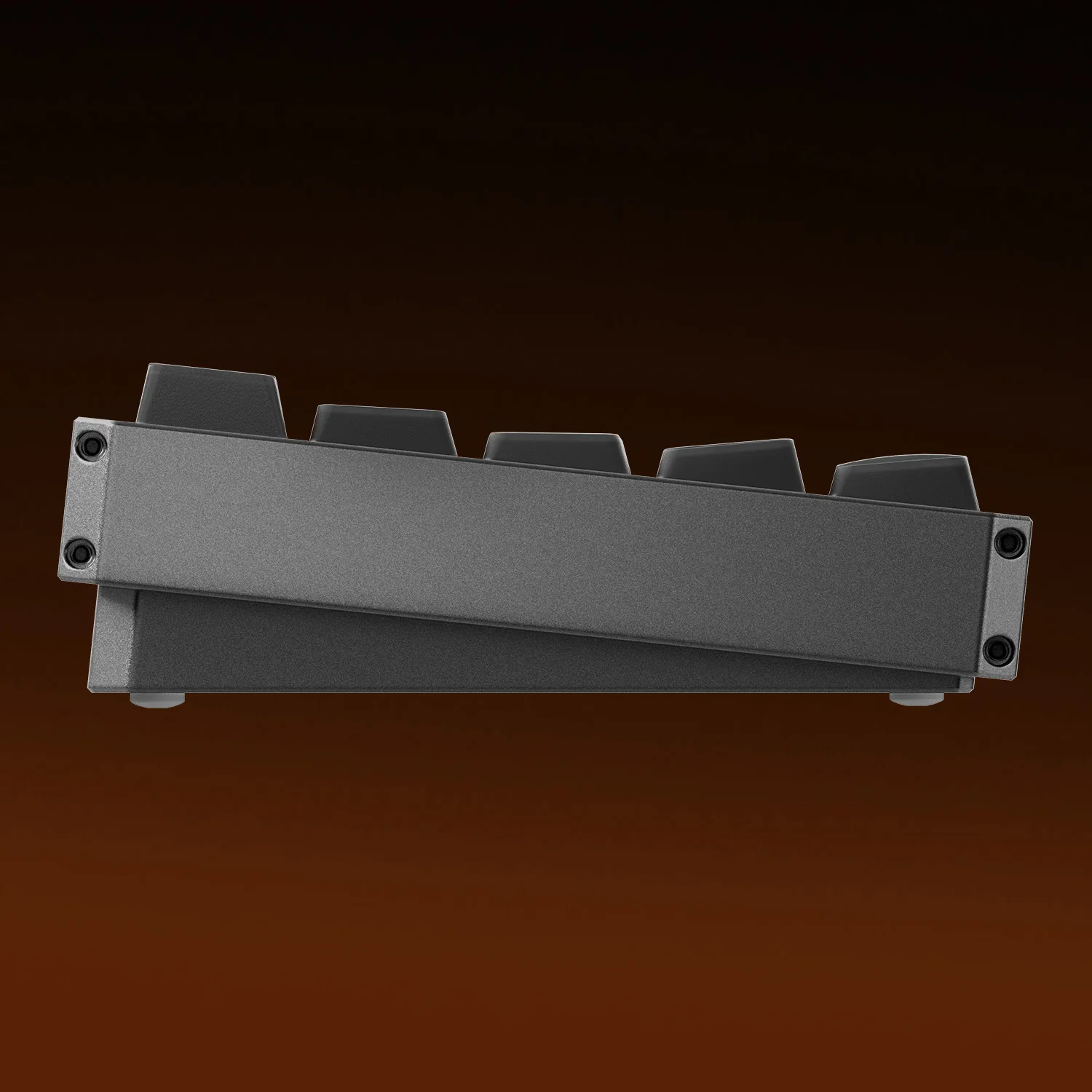

Ergonomic Comfort

Designed with your comfort in mind, MOD68 HE Magnetic Keyboard provides an ergonomic typing experience that reduces strain during extended use
