SPECIFICATIONS

Audio Input/Output: 3.5mm Audio Jack *1

Audio/Video Output: HDMI 2.0*1 (4K@60Hz)+USB3.2 Gen2 Type-C *1 (4K@60Hz)+DP1.4*1 (4K@60Hz)

Brand Name: KAMRUI

CPU Speed: 3.35GHz up to 3.7 GHz

Graphics Card Type: Integrated Card

Hard Drive Capacity: 512GB

High-concerned chemical: None

Integrated Graphics Card: AMD Radeon Graphics(1300MHz,8CORES

LAN: 1*10/100/1000Mbps RJ45 Gigabit Ethernet Port

Memory Capacity: 16 GB

Model Number: P2

Origin: Mainland China

Power Supply: DC 19V/3.42A,DC Header 5.5*2.1mm

Processor: AMD Ryzen Embedded R2544 Processor, 4 Cores/8 Threads

Processor Brand: AMD

Processor Main Frequency: 3.35GHz

Processor Model: AMD Ryzen Embedded R2544

RAM: 16GB SO-DIMM DDR4(DDR4 SO-DIMM Slots*2,up to 32GB

ROM: 512GB M.2 2280 SSD(2* M.2 2280 Slots (M.2 2280 SATA&NVMe PCIe3.0*2 Slot *1 ,M.2 2280 NVMe PCIe3.0*4 Slot *1,max 4TB )

System: Windows 11 PRO

TDP: TDP Max 28W

Type: Mini Desktop,Mini PC

Use: Multimedia

Wireless Connectivity: WiFi 5+BT4.2(M.2 2230)

KAMRUI Mini PC, P2 Win 11-Pro Ryzen Embedded R2544 (Beat 3500U/4300U/N150/i3 10110U, Up to 3.7GHz), Mini Desktop Computer 16GB DDR4 512GB SSD, Samll Pc Dual 4K/Ethernet/WiFi/BT Business, Office, Home

🔹 Ryzen Embedded R2544 (4C/8T, up to 3.7GHz) – Reliable performance for industrial and daily use.

🔹 Triple Display Output – HDMI 2.0 + DP 1.4 + USB-C, supports three independent screens.

🔹 Radeon Graphics (1300MHz) – Smooth 4K video and office productivity.

🔹 16GB DDR4 + 512GB SSD – Expandable to 4TB for ample storage.

🔹 Ultra-Compact (5.05"×5.05"×1.73") – Dual-band WiFi, BT4.2, Win11 Pro ready.

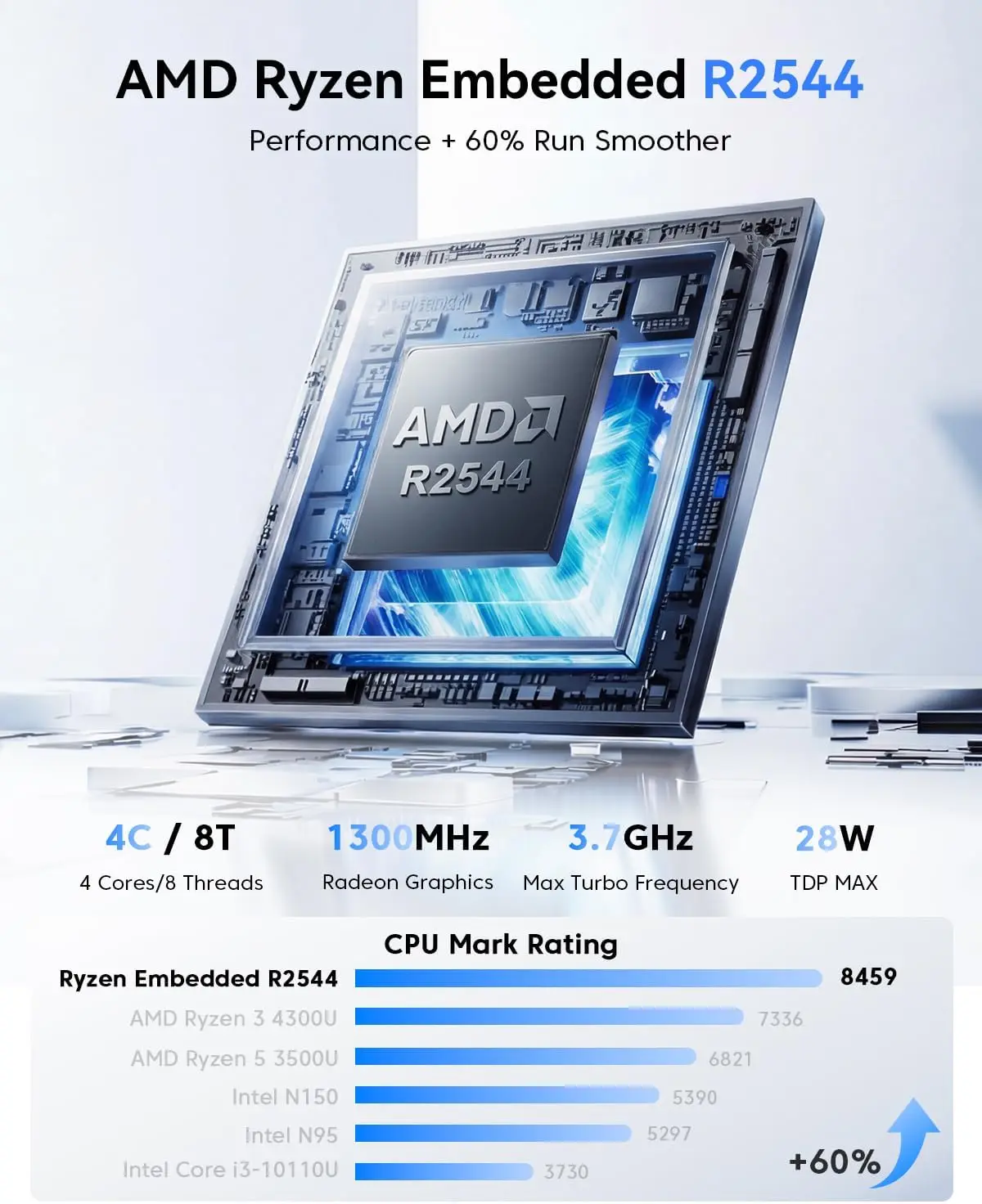

[Powerful AMD Ryzen Embedded R2544 ] The KAMRUI P2 Mini PC is equipped with the AMD Ryzen Embedded R2544 processor. This 4-core, 8-thread CPU features 4MB of L3 cache, a base clock of 3.35 GHz, and a max boost clock of up to 3.7 GHz.The performance is superior to chips such as R5 3500U, R3 4300U, i3 10110U and Intel N97/N150, with a 35% increase in performance , It provides excellent single threaded and multi-threaded performance. This compact system can easily handle complex multitasking and provide excellent responsiveness.

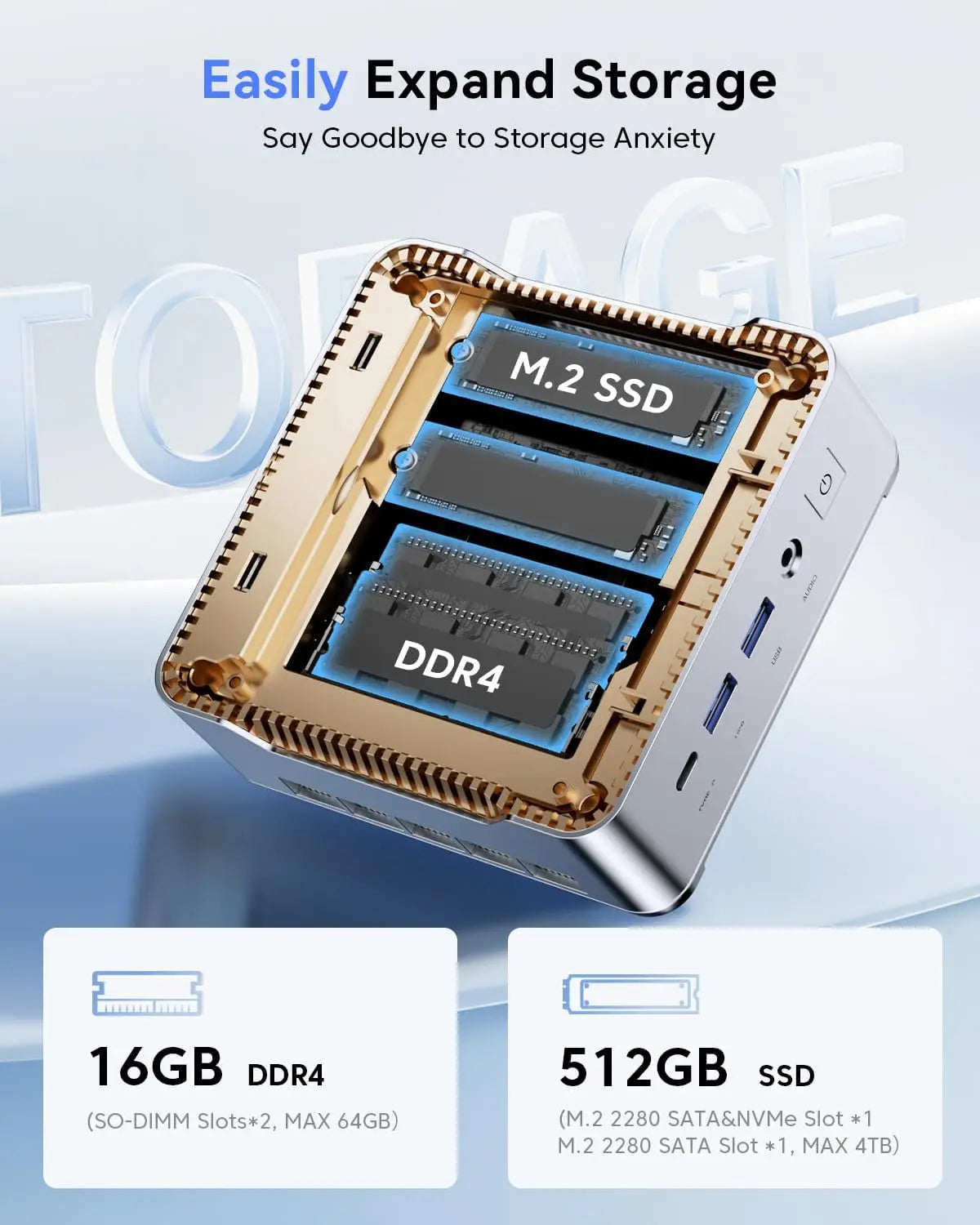

[16GBRAM+512 M.2 SSD] The KAMRUI P2 Mini Computer starts with a robust 16GB of DDR4 memory, which can be upgraded to a high-performance 32GB dual-channel configuration. This dramatically accelerates data throughput for demanding applications. For storage, it combines the speed of a 512GB M.2 SSD with massive expansion potential (up to 4TB), making it an ideal central hub for media, backups, or network-attached storage (NAS) duties.

[Triple 4K@60Hz Display] This Micro pc supports driving three independent displays simultaneously at 4K resolution and 60Hz refresh rate. It delivers sharp, vibrant visuals for both professional workflows and entertainment. The extended desktop capability allows for seamless multitasking across multiple screens, significantly enhancing productivity, consuming content, and light gaming experiences.

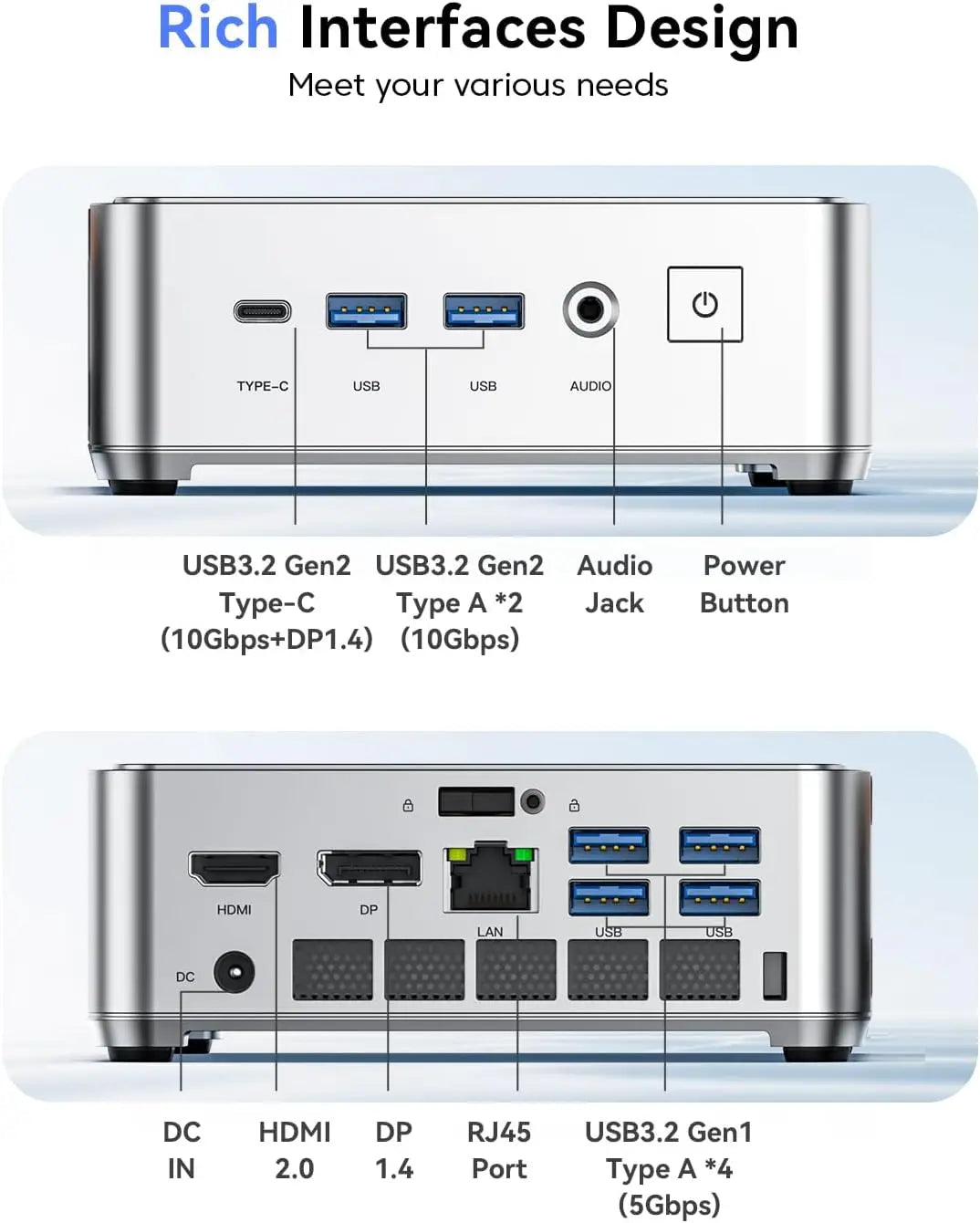

【USB3.2 Gen2 Type-C 10Gbps, Versatile connectivity】KAMRUI P2 mini desktop pc fast and versatile connectivity! The USB3.2 Gen2 Type-C port offers a data transfer rate of 10Gbps and simultaneously supports DisplayPort 1.4 video output. The P2 AMD Ryzen 4300U Mini PC is complemented by Gigabit LAN, WiFi and Bluetooth, so nothing stands in the way of a productive working environment.

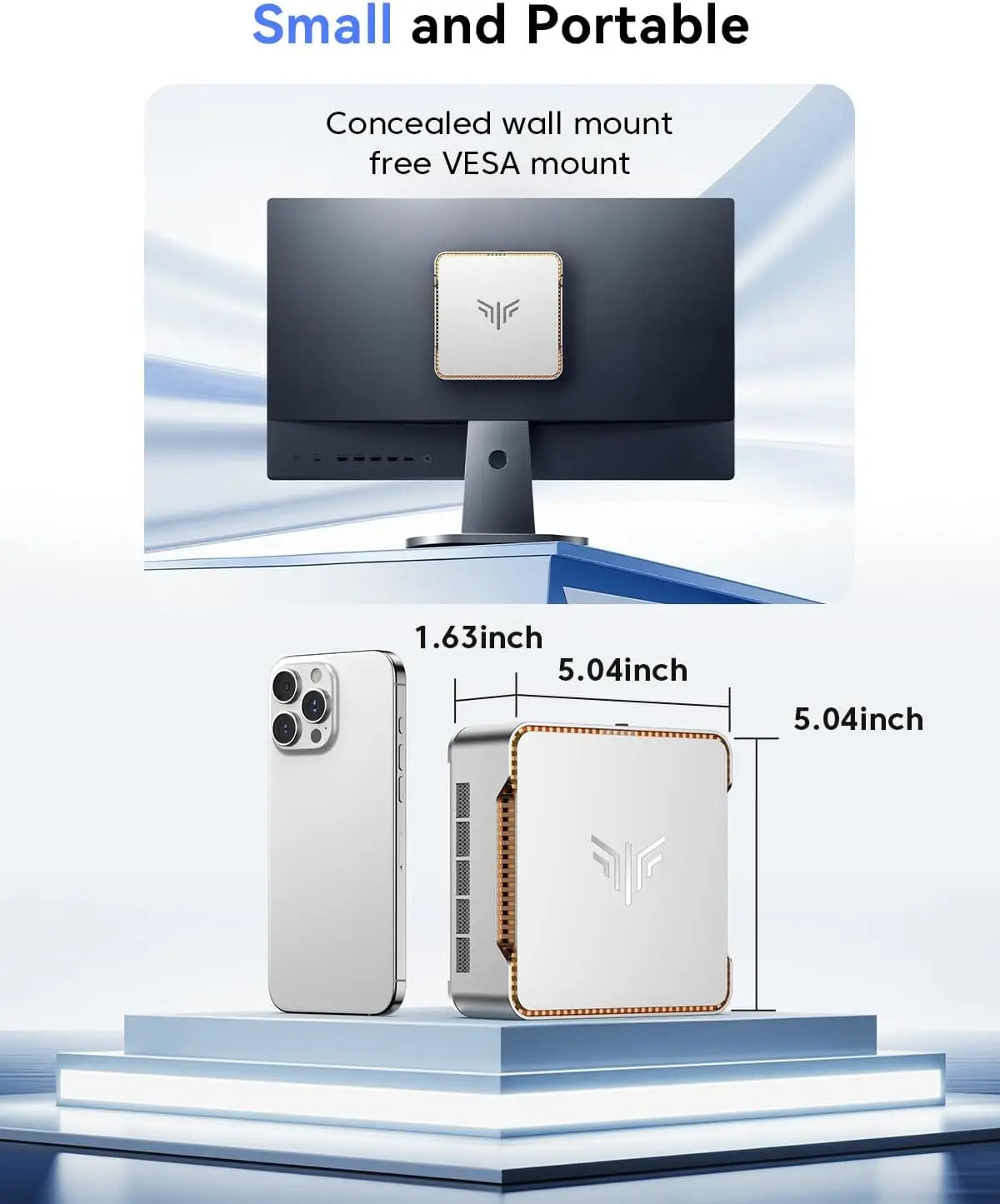

【Save space & High efficency cooling system】The portable small pc features a silver case and can be stored in a bag and carried with you at any time, ideal for business trips. Save space by supper mini size(5.05x5.05x1.73 inch) and a VESA mount to install it on wall or monitors. The shape of the P2 has been recently improved, improving heat dissipation and enabling continuous and stable operation of the micro pc. The cooling fan is practically silent at light load and even under load, the fans remain fairly quiet; minimal or inaudible fan noise is perfect for concentrating on the task at hand!
