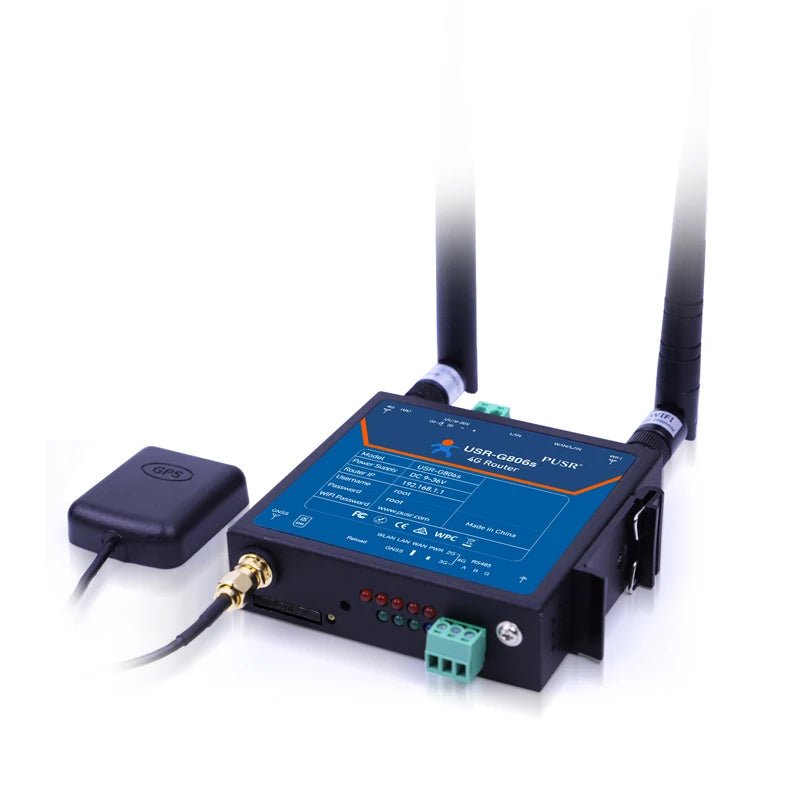

USR-G806s-G | Global Band Industrial 4G LTE Router with GNSS

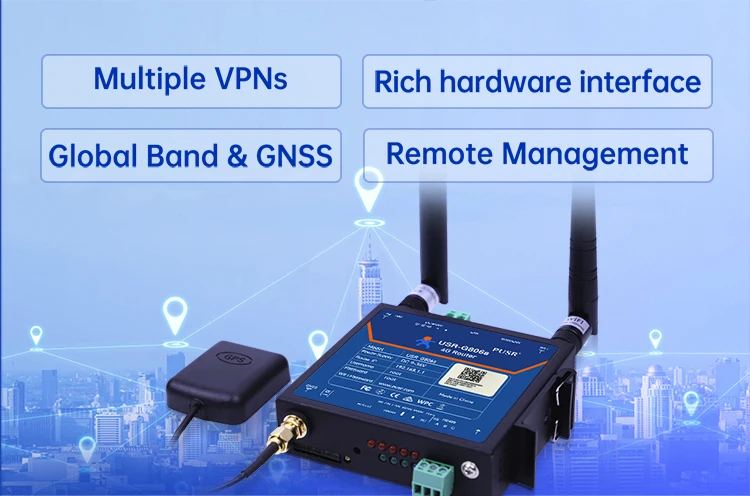

Global Band & GNSS, Industrial Design, Multiple VPNs, Remote Management

USR-G806s-G is a global band industrial 4G router with GNSS function lunched by PUSR, it adopts Qualcomm solution 4G modem which can provide the most stable and flexible wireless network for users over the world, uses can monitor the location information of assets anytime and anywhere.

This product comes with rich hardware interfaces including 1*WAN/LAN configurable,1*LAN, and 1*RS485, which allows the device to realize data transmission of network devices and serial port devices at the same time.

This product also integrates a variety of VPN protocols to prevent data from being accessed or tampered and provides high security for data transmission over network.

With GNSS Location, Monitoring Your Assets

USR-G806s-G can report the location information in RMC and GGA formats to the manned cloud platform for track display, or to the user-defined TCP/UDP server for location and tracking.

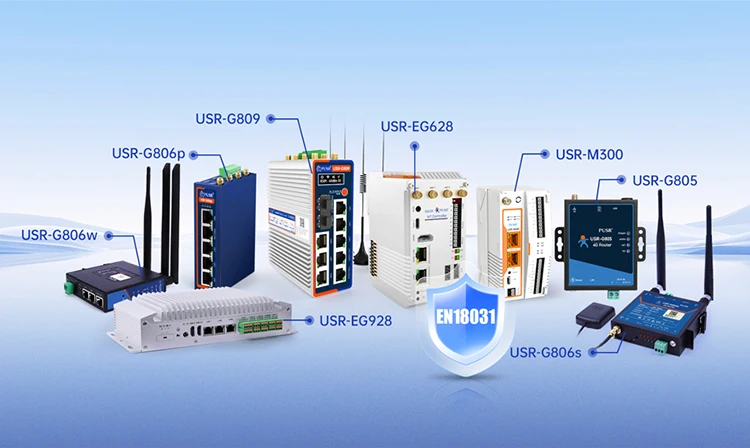

Certified & Secure: Multiple PUSR Products Meet RED Cybersecurity Standards

Multiple PUSR devices have successfully obtained the EU EN 18031 standard certification. This marks that PUSR's products have met the requirements of the EU in terms of cybersecurity, providing global customers with more compliant and securely connected IoT products.

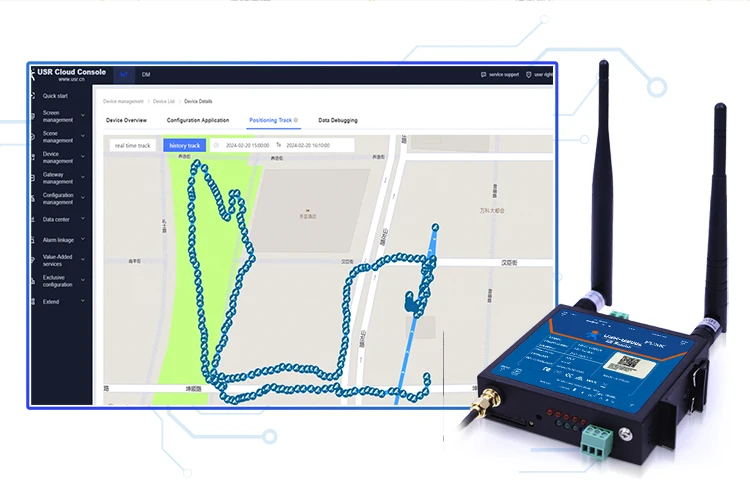

A Visible Trajectory

The data in the picture is the measured data tested by PUSR engineers. The positioning track is displayed on PUSR's platform, positioning and tracking anytime and anywhere. The data can also be sent to private servers in GPGGA or GPRMC format.

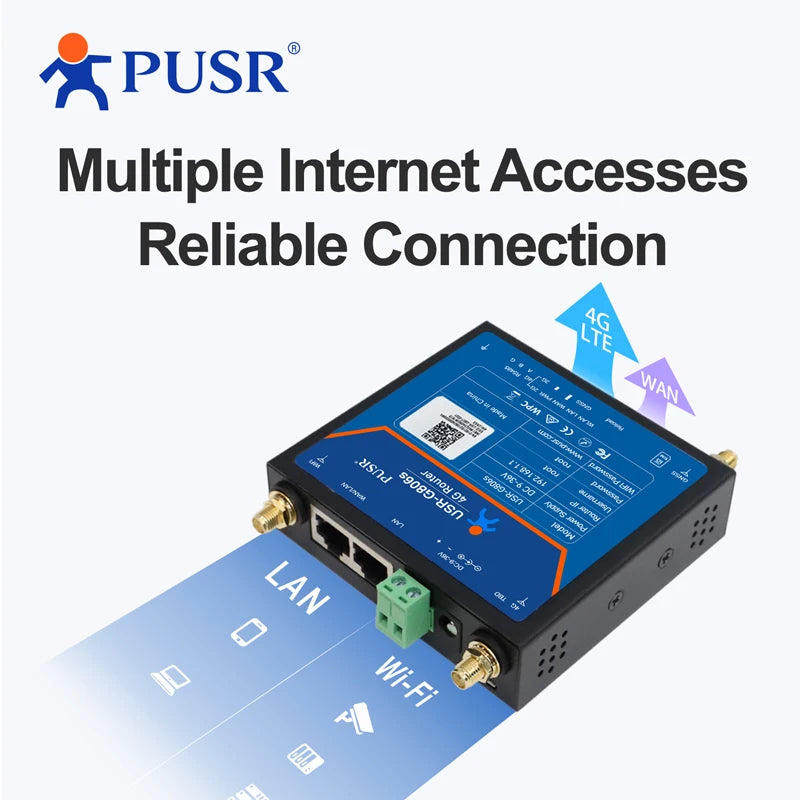

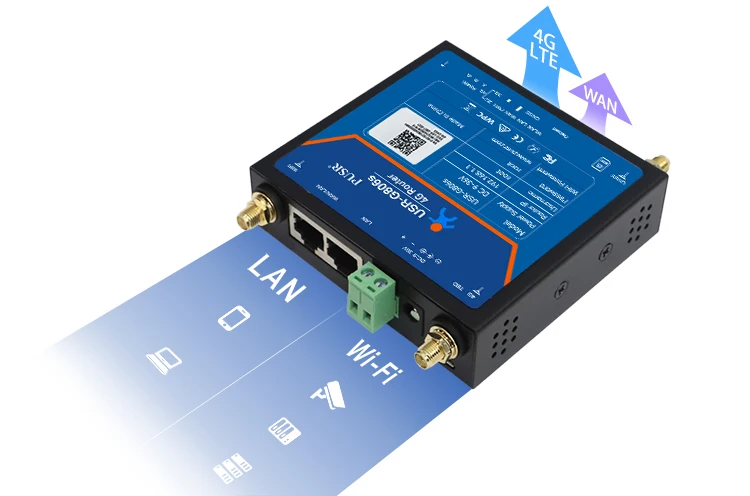

Multiple Internet Accesses, Reliable Connection

The router can access the Internet through a SIM card or wired WAN port, supporting network failover, providing a stable and reliable network environment for terminal network devices.

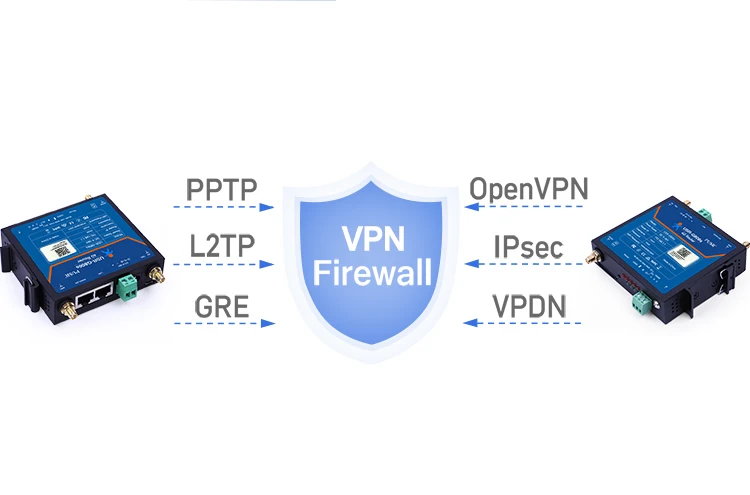

Your Data Security, Our Responsibility

1. Comprehensive VPN protocols support ensures your data security, including

OpenVPN, IPsec, PPTP, L2TP and GRE.
2. Multiple encryption method make financial-grade data transmission.

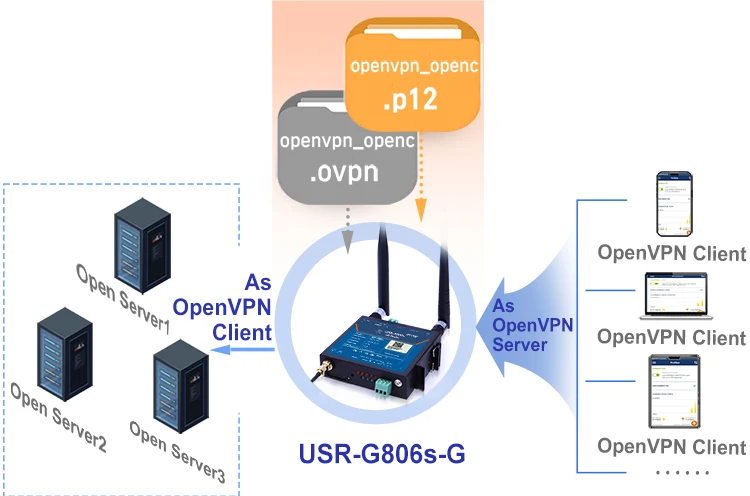

Enhanced OpenVPN Design, Simple Your Configuration

1. Easy to use, but also professional.
2. Allows to connect to three different OpenVPN servers as a client and also function

as an OpenVPN server.
3. One-click import .ovpn config-file and PKCS#12 cert-file import Say goodbye to

the complex parameter.
4. Available to OpenVPNR CloudConnexaTm,OpenVPN Access Server, OpenVPN

@AWS EC2,Open source OpenVPN,OPNsense,pfSense and other OpenVPN Servers.

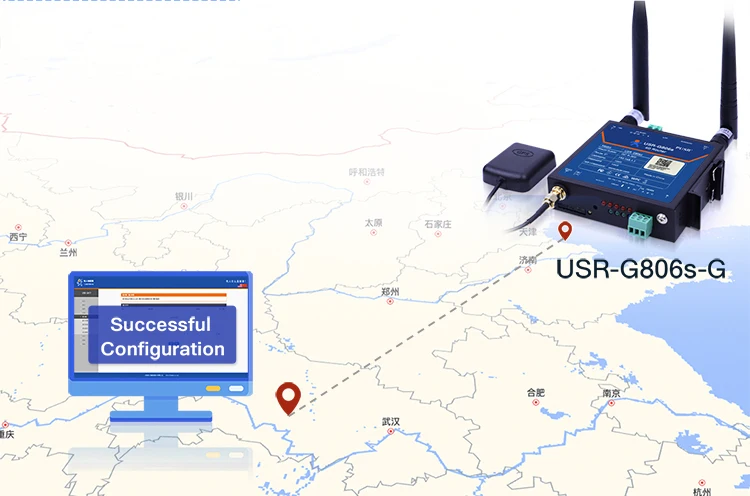

Remote Management, Anytime Anywhere

PUSR Remote Management platform is an all-in-one user-friendly loT platform providing a smart way to manage your device remotely, securely and reliably. Users can access to built-in web page remotely to achieve Parameter Configuration, Device Reboot and Firmware Upgrade.

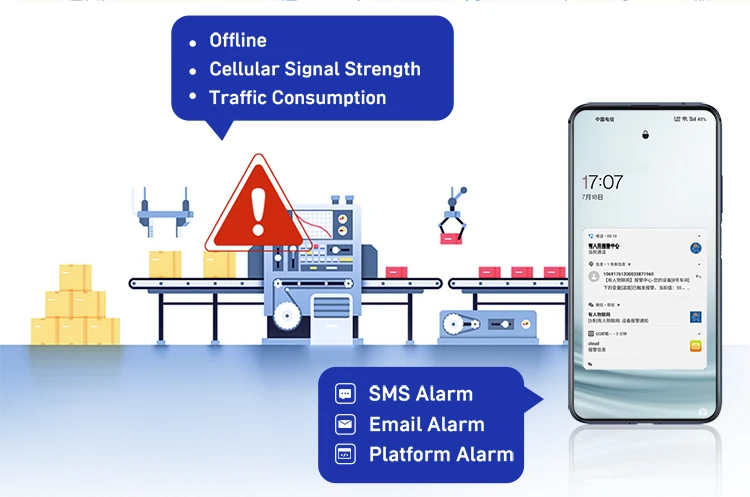

Network Abnormal, Real Time Alarming

1. Device offline alarm, weak signal alarm, network traffic overrun. All of this can be alarmed in real time.
2. Multiple alarm push ways such as E-mail, SMS. Repeated push supported.

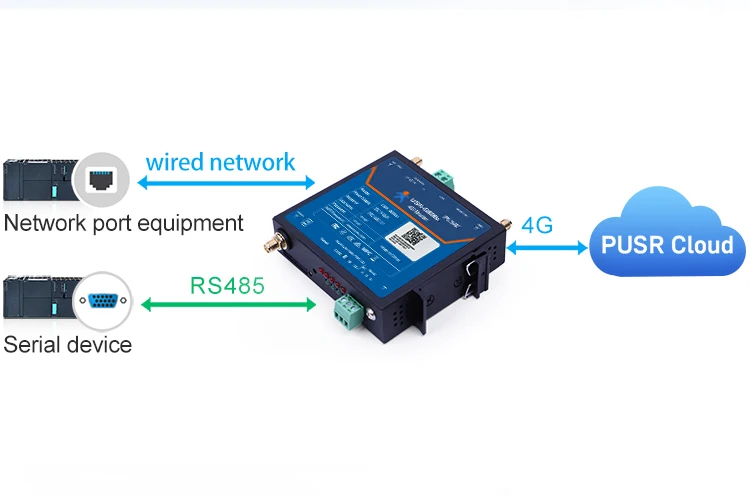

Serial Modem

USR-G806s also integrates with serial modem, which can easily achieve the two-way data transparent transmission between RS485 devices and 4G network. With this device, users can easily send serial data to different servers via TCP/UDP/HTTP. It also supports user-defined register & heartbeat packets to ensure the device online.

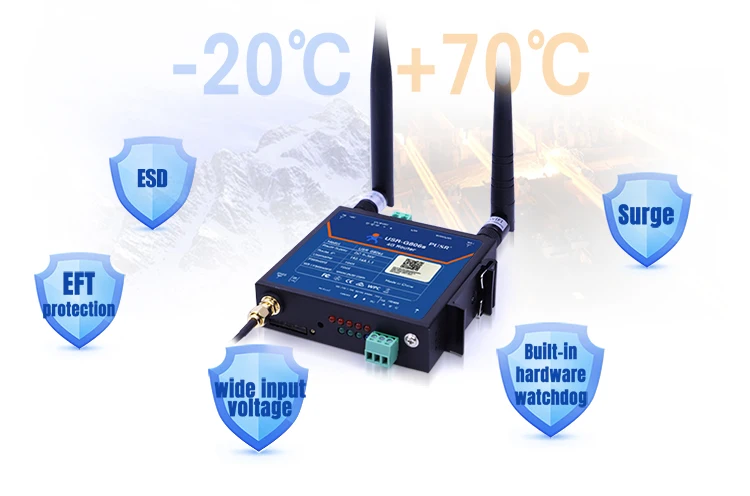

Industrial Grade Design, High Reliability

· EMC Protection: Surge, EFT and ESD protection for serial ports, Ethernet ports and power circuits.
· Watchdog: Hardware & software dual watchdog, 7*24h stable operation without downtime.
· Wide Operation Temperature: -20℃~+70℃.
· Wide Input Voltage: 9~36V.
· Metal Housing: IP30 protection.

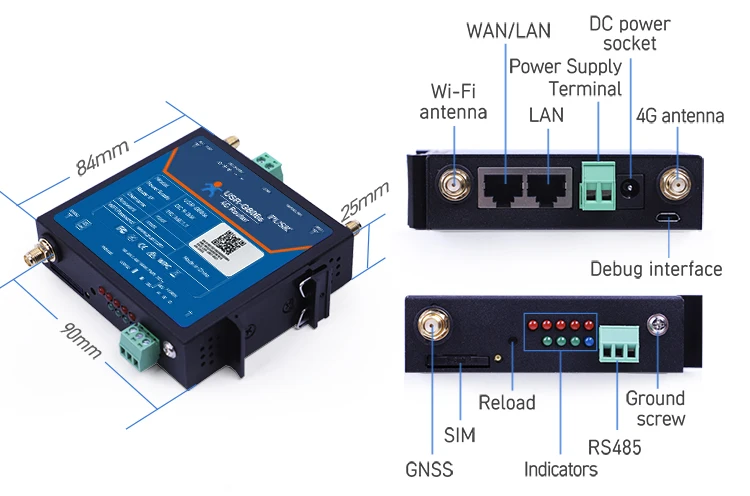

Product Details

• Dimension: 90*84*25mm
• Ethernet Ports: 1*WAN/LAN(Configurable)+1*LAN
• Wi-Fi: IEEE 802.11 b/g/n, 1*RP-SMA-K antenna connector
• Power Supply: 2-pin terminal block & DC socket redundancy
• SIM Card: Mini SIM(2FF)
• Installation: Wall Mounting & DIN Rail Mounting Available

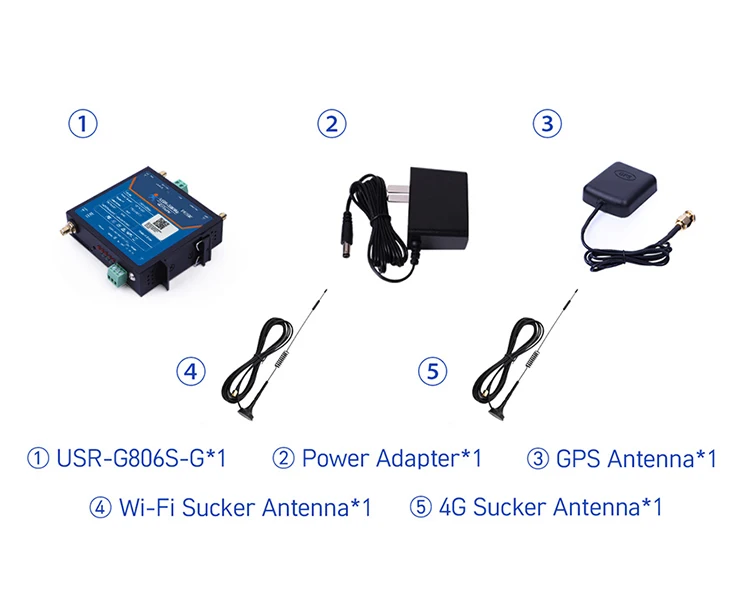

Packaging List

· 1*USR-G806s
· 1*Wi-Fi Sucker Antenna
· 1*4G Sucker Antenna
· 1*GPS Antenna
· 1*Power Adapter

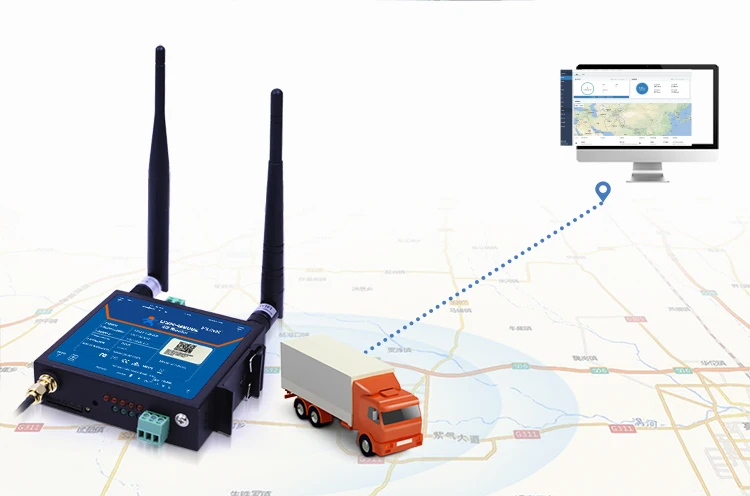

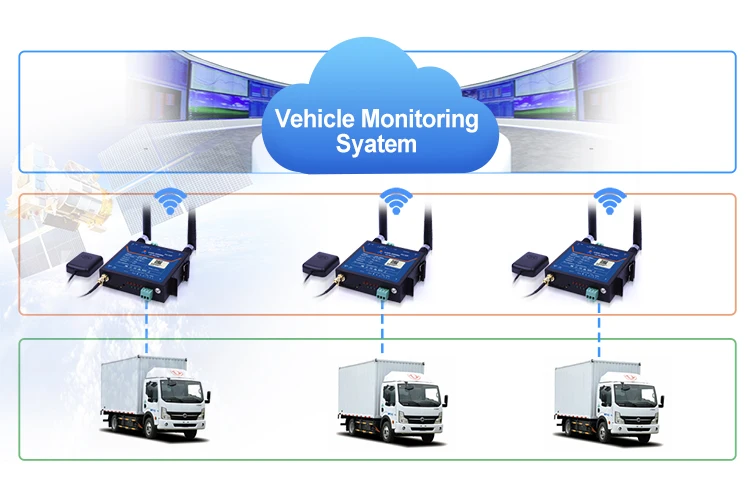

Vehicle Monitoring ApplicationThe USR-G806s-G

uploads vehicle location information to the cloud in real time. Users can monitor vehicle status in real time to achieve streamlined intelligent management.

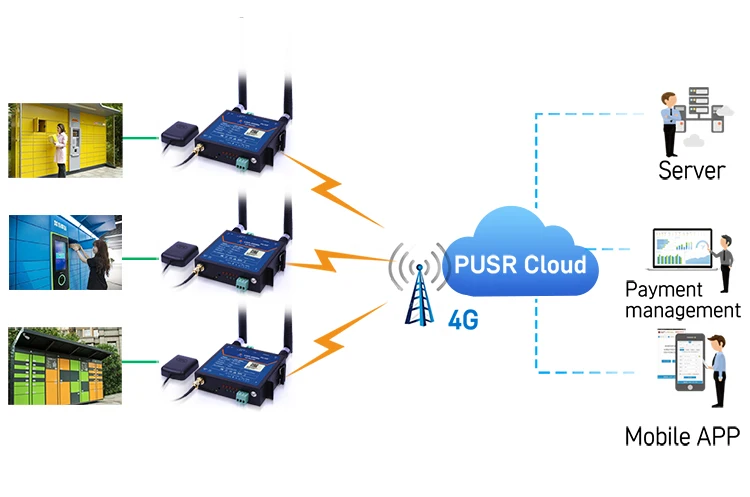

Smart Express Cabinet

G806s integrates routing and serial modem, which can not only provide network for industrial computer and camera, but also provide data interaction for door lock. When the user uses the smart express cabinet, the USR-G806s can enable the cabinet and the server to communicate in time and open the door of the box.
